2025 Bcmc Marble Granite Block Trimming Machine Diamond Wire Saw Edge Stone Cut Machine

Product Description

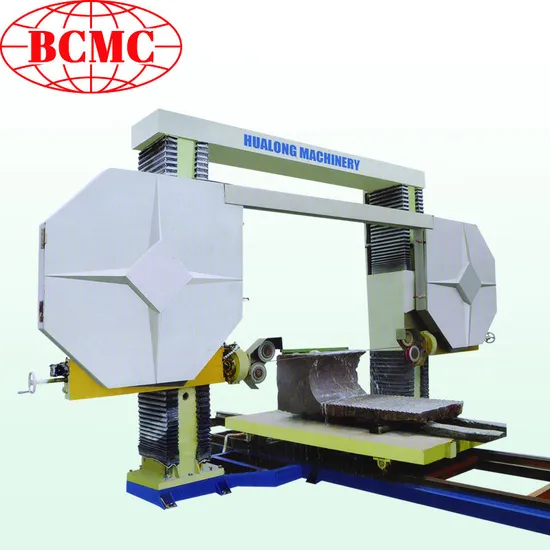

BCMC Machinery BCSJ-1500/1800/2200 is a kind of curve shape slab processing machine. By CNC control and with 5 axes for different direction moving. This machine meet your requirement of arc, curve shape surface, hollow work piece or slabs in complex shape. The working principle is that through the rapidly movement of the diamond wire saw and cutting the blocks into the final shape you want.
Main Features: CNC control system. Human-machine interactive surface for flexible and visible control. Adjustable speed control for different processing requirement. Stable and constant flywheel structure for keeping the diamond saw stretches well in it and ensure the accuracy. High efficiency, good work pieces with precise processing effect. Parameters:

Model No.	BCSJ-1500	BCSJ-1800	BCSJ-2200
Overall Dimensions (L x W x H)(mm)	7500*6000*3800	8800*6800*4800	9800*7000*5200
Max. processing dimensions	3000*2000*1500	3600*2000*1800	4000*2000*2100
Overall weight (kg)/Gross weight(kg)	7000	10500	14000
Diamond Beads Diameter/Diameter of wire	8-10	8-10	8-10
DIAMOND WIRE LENGTH	16500	19300	213500
WIRES SPEED/Cuttting linear speed	19.38	19.38	24.03
water consumption(m3/h)	2	2	2

Application:
* Complex stone artwork
* City stone decoration
* Letter cutting

---
