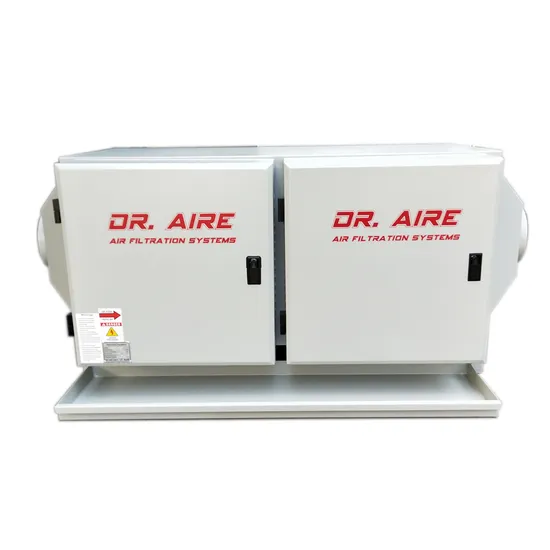

Dr Aire Over 95% Smoke Remove Coffee Roaster Electrostatic Filter

Product Description

During cooling process for coffee roasting, a lot of smoke and smell is exhausted from the cooler stack until the roasted coffee is cooled to a smokeless level. DR AIRE Coffee Roaster Smoke Filter is designed for solving the smoke and smell.
tks for our DR AIRE customer support and offer me the ESP working video, from your whistle and words, know you are satisfied our profession service. After-sales service go on for you everyday.
1. The dirty air first passes through a pre-filter. Large particles of oil are filtered.
2. The air then passes into the high voltage ionise section where the particulates are charged to a positive potential. And then the air passes into low voltage collector cell
section where the particulates are charged to a negative potential. So the particulates are attracted to the collector plates effectively.
3. The particulates remain on the plates or drain down in to the sump.
4. Cotton actvied carbon filter to remove the smell.
5. The cleaned air exits through the cabinet.

DGRH-K Single Pass Electrostatic Precipitator
NO.	Model	Air Flow (M³/H)	Cabinet Size L*W*H (MM)	Flange Size (W*H)	Efficiency	Pressure drop (Pa)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-3500(U)	3000-3500	640*765*690	485*530	95%	39	120 (200)	60	UV-C optional
2	DGRH-K-7000(U)	6000-7000	640*1300*690	1020*530	95%	39	220 (520)	94	UV-C optional
3	DGRH-K-10500(U)	9000-10500	640*1835*690	1560*530	95%	39	320 (920)	122	UV-C optional
4	DGRH-K-14000(U)	12000-14000	640*1300*1380	1020*1220	95%	39	440 (1040)	188	UV-C optional
5	DGRH-K-21000(U)	18000-21000	640*1835*1380	1560*1220	95%	39	640 (1840)	244	UV-C optional
6	DGRH-K-31500(U)	27000-31500	640*1835*2070	1560*1950	95%	39	960 (2760)	366	UV-C optional
DGRH-K Double Pass Electrostatic Precipitator
NO.	Model	Air Flow (M³/H)	Cabinet Size L*W*H (MM)	Flange Size (W*H)	Efficiency	Pressure drop (Pa)	Power (Watt)	Net Wight (KG)	Remark
1	DGRH-K-2-3500(U)	3000-3500	1060*765*690	485*530	99%	45	240 (320)	120	UV-C optional
2	DGRH-K-2-7000(U)	6000-7000	1060*1300*690	1020*530	99%	45	440 (740)	188	UV-C optional
3	DGRH-K-2-10500(U)	9000-10500	1060*1835*690	1560*530	99%	45	640 (1240)	244	UV-C optional
4	DGRH-K-2-14000(U)	12000-14000	1060*1300*1380	1020*1220	99%	45	880 (1480)	376	UV-C optional
5	DGRH-K-2-21000(U)	18000-21000	1060*1835*1380	1560*1220	99%	45	1280 (2480)	488	UV-C optional
6	DGRH-K-2-31500(U)	27000-31500	1060*1835*2070	1560*1950	99%	45	1920 (3720)	732	UV-C optional

Removal Efficiency Rate:
Single Pass ESP series: >95% designed for high altitude air emission level .
Double Pass ESP series: >99% designed for low altitude air emission leve.
ASHRAE 52.2 MERV 15 Standard
Supperior Advantage

1. Modular structure Easy installation, maintenance and cleaning.

2. Intellegent electrostatic power control system. Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.

3. Safety and Stability: Door-open power-off protection, Over-current, voltage, temperature protection, Fan cooling

4. Photolysis and odor removal:(option actived carbon filter) High power UV tube will remove food odor more efficiently.

5. Application: Commercial kitchen, dinning room, restaurants,hotels, fast food's cooking smoke and smell.

The First time choice for DR AIRE ESP, Forever Trust !
Welcome order.

Dongguan Rui zhaohe Environmental Protection Equipment Co., Ltd is one of leading manufacturers in China,specialized in manfacturing commercial, industial air pollution control machines.
DR AIRE is our brand,main products: commercial kitchen electrostatic precipitator (ESP), mobile cooking station ,BBQ cart with Smoke filter, industrial Esp, ductless range hood, ,coffee Roasters smoke filter ,actived carbon filter, CNC oil mist collectorand etc
DR AIRE ESP teams not only sell the products, we also offer perfect air purification scheme and professional service for you! Not miss the business opportunity !

---
