Outdoor Galvanized Foldable Collapsible Metal, Steel Storage Welded Cage, Storage Cage

Product Description

Product introduction

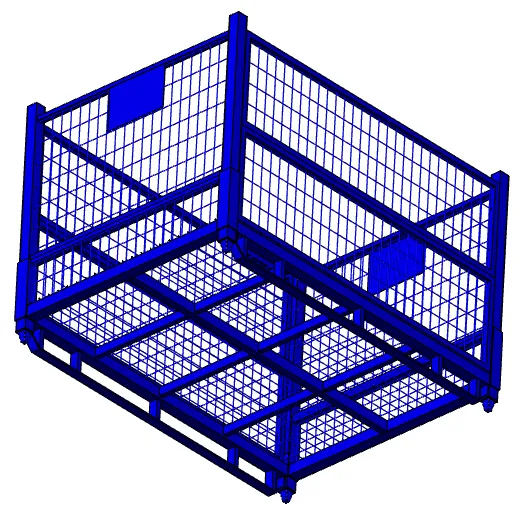

Storage cage
Item			outside Dimensions(mm)				volume(m3)	Loading Capacity(kg)
model	wire dia(mm)	mesh grid(mm)	Length	Width	Height	Foot Height
FPYA-3	6.0	50*50	800	600	640	100	0.22	250-2000
FPYA-5	6.0	50*50	1000	800	840	100	0.54
FPYB-5(1021A)	6.0	50*50	1200	1000	890	100	0.84
FPYB-5(810)	6.3	50*50	1000	800	840	100	0.52
FPYB-7(1012)	6.3	50*50	1200	1000	890	100	0.84
FPYB5-1/2(810S)	6.3	50*50	1000	800	500	100	0.26
FPYS-5(810L)	6.3	50*100	1000	800	840	100	0.52
FPYS-7(1012L)	6.3	50*100	1200	1000	890	100	0.84
FPYC-2(508E)	5.0	25*50	800	500	540	100	0.15
FPYC-5(810E)	5.0	50*50	1000	800	840	100	0.52
FPYE-2(508)	3.0	30*30	800	500	530	100	0.15
Surface Treatment: Power Coating or Galvanized
Above is some of our usual dimensions of storage cage
Non-standard types can be customized.
Transport package :Plastic banding +stretch film wrapped ,Easy loading

1,Able to be conveyed by pallet vehicles,forklift,elevator and crane ,four layers may be stacked.
2,Easy operation ,wide use and long service life .
3,Welded by strong steel bar,"U"shaped channel steel is used at the bottom to increase the solidity
4,Able to be used in the logistic circles ,such as transportation ,assembly and disassembly ,and storage ,by integreating transportaion equipments .
5,Cadboard can be euippped in the basket to protect the surface of materials and ensure the completeness of materials during storage and transportation ,so that the cost is reduced and the efficiency is increased
Wire mesh container is also called storage cages and butterfly cages. They are an important type of logistics container in storage and transportation. They have the advantages of fixed storage capacity, neat stacking, storage at a glance, and easy inventory counting, and also improve the effective utilization of storage space. The storage cage can be folded freely, and can be folded and stored when not in use, saving space in the warehouse.In addition, the product is durable, easy to transport, and can be reused, which can effectively reduce the manpower consumption and packaging costs of warehousing companies. This product can not only be used in factory production workshops, but also can be used in supermarkets as display promotion and warehousing, and can be used outdoors. The improved wire mesh container can be placed on the shelf, the assembly line, or on the stacker: The wire mesh container with wheels can be quickly and easily turned around in the workshop. Wire mesh container with PVC plates or iron plates can prevent small parts from leaking Q&A 1 What is the material being used for your products?---Mild steel Q235, Q195
2 How is the goods being packed?---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading
With standard forklift truck
3 What is the payment terms I can get?---T/T or L/C at sight, DP etc
4,Do you offer R&D support ?
Yes we do. Our professional team provide assistance with design and production to specific requirements of different systems.
We work each of our clients to make sure that we are matching their needed schedules, professional solution and timely delivery.
5, What kind of finish do you provide for your goods?--- A.Electro-galvanized/Zinc plated: B. Hot dip galvanized: C. Powder coating
6 What is the loading capacity? --In general, we have light duty(100~300kg) model,medium-duty(400~800kg) model and heavy-duty(1000~1700kg) model available for your choice.
7 Which product can be used in cold storage?---Mobile rack, wire container, and roll cage are all widely used in cold storage.
8 I don't have drawing or picture available for the custom products, could you design it
for me?Yes, we can make the best suitable design for you but do need to know the details, such as a) dimension b) loading capacity c)stackability d)operation environment
9 What is the minimum quantity I can order?--About30-50 , quantity is variable depend on the size
10 What is your average production lead time?--3-4 weeks against formal order and deposit.
