Welcome to visit

Adjustable Ground Anchors Foundation Pile Galvanized Solar Ground Screw

US$10.00
100-999 Pieces
US$9.50
1,000+ Pieces

Basic Info.

Model NO.
SF-GS03
Groove
Interior Angles Quartet
Connection
Hinged Bolts
Head Style
Counter Sunk Bolt
Standard
DIN, GB, ANSI
Grade
8.8
Product Name
Ground Screw
Application
Building Construction
Size
Customized
Warranty
10years
Color
Silvery
Surface Treatment
Hot DIP Galvanized
Delivery Time
15-30days
Advantage
Customized Service Provided
Certificate
ISO9001
Transport Package
Ground Anchors in Pallet, Carton Box
Specification
Customize
Trademark
Solarfirst
Origin
China
Production Capacity
2000000 Piece/Pieces Per Month

Product Description

Product Description

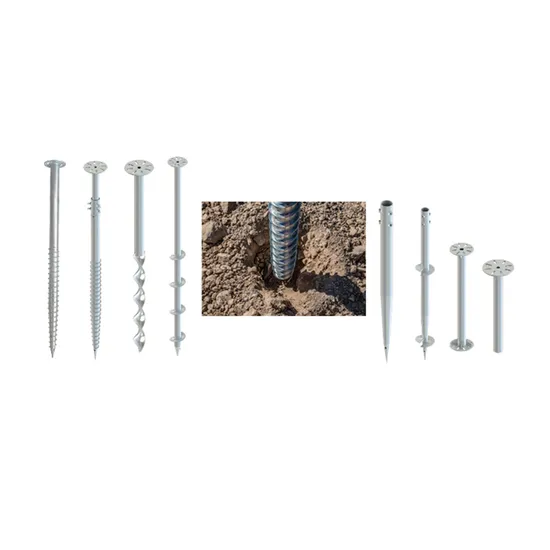

Ground ScrewSolarfirst ground screws can be mounted in a wide variety of terrain, all year round, come rain, wind or shine. There is no need to postpone work even for a hard frost, as the ground is pre-drilled for each screw to ensure the best possible fixing. Our authorised installers are also experienced with anchoring soundly and securely in everything from sandy soil to rocky ground.Advantages:1. Easy installation, low cost.2. Widely application.3. Anti-rust4. Environmentally friendly.5. Suitable for metal, wood, plastic post, etc.Technical Details
Product NameGround Screw
Connect StyleFlange (Triangle, Square, Round, Hexagon), Bolts
MaterialHot-dip Galvanized Steel
Surface TreatmentHDG DIN EN ISO1461
Length300mm-3000mm
Pipe OD48mm-219mm
Pipe Wall Thickness1.8mm-4.0mm
Flange Thickness8mm/10mm
Warranty10 Years Warranty
GalvanizingThe surface treatment is acid piking and hot dip galvanizing.TestingOur quality control will best the goods and supply checking reports according to customer's need. PackingSteel pallet is used to place ground screw and then wrap the pallet with multi-layer packaging to firm the ground screw. Production Process
Project
For us to design and quote:1. What's the quantity? ________PCS
2. Length: ________mm (1600mm)
3. Pile pipe outer diameter: ________mm (76mm)
4. Pile pipe thickness: ________mm 3.0mm±0.25(standard)
5. With or without flange plate? Or other types of plates?
Exhibition
Certifications
