Unique Design Hot Sale 380V 50Hz CNC Aluminum Profile Bending Machine

Product Description

Product Description

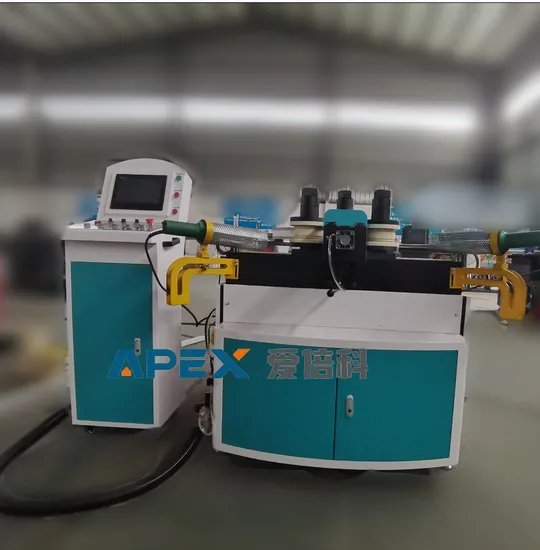

Fall Automatic CNC Vertical Roll Bending MachineThe machine has high-strength and reliable mechanical strength and rigidity, and can run stably and reliably in various complex environments.The equipment is widely used in the bending forming of various standard and non-standard metal profiles, such as U-shaped, C-shaped, round, oval, multi-radius forming, etc. in the industries of building doors, windows and curtain walls, automobile industry, high-speed rail, aerospace, decoration, ships, tunnels and bridges, advertising, etc.
The machine adopts automatic numerical control system and special bending forming software, which is simple and convenient to operate.
Adopt numerical control hydraulic system to ensure positioning accuracy. According to the springback data of profile forming, the machining accuracy is high after systematic compensation.
Finished product display:
Product Parameters
Detailed parameters:

Power supply	380V/50HZ
Input power	5.2KW
Working pressure	0.2Mpa
Min diameter of bending	60mm
Max width of profile	150*180mm
Max diameter of rolls	200mm
Lower shaft center-dimensions	350-750mm
Hydraulic cylinder pressure	20/25T
Rolls-holding shaft diameter	60/65mm
Rotation speed of shaft	1-8r/min
Positioning precision	±0.1mm
Top roll runout	200/280mm
Torque	2500N.m

Weight & Size:

Overall dimension	1300*1100*1100mm
Machine weight	1000kg

Packaging & Shipping

Minimum order quantity (MOQ)	1 Set
Delivery time	About 35 workdays
Port of loading	Qingdao Port
Type of payment	Payment is mainly in the form of TT and can also be negotiated with the customer.
Export	To more than 80 countries and regions, including South Korea, Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia, Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc
Packing method	The main body of the machine is outsourced with plastic film (dustproof, corrosion prevention), which is loaded into the container and fixed in the appropriate container with steel cables and locks, suitable for long-distance transportation. (Or according to customer requirements)

FACTORY DISPLAY:
OUR CUSTOMER:
After Sales Service
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
FAQ
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.

---
