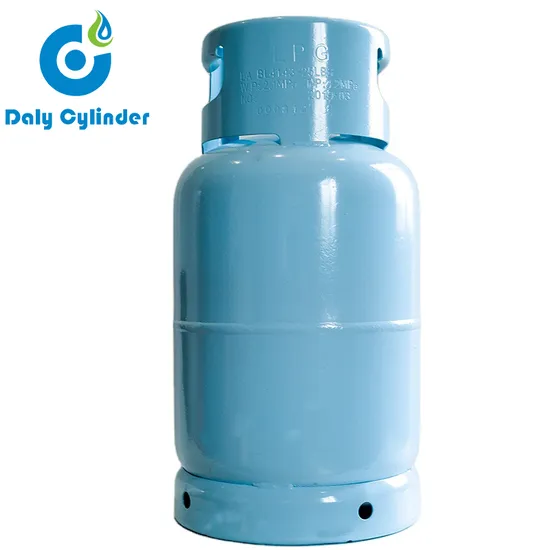

Cilindro 12.5kg LPG Cylinder

Product Description

Standard	ISO4706, ISO9001:2008, CE,NIS 69, DOT 4BA, PNS 03-1, AS 2469.....
Material	HP295 hot rolled steel
Test Pressure	30Bar
Work Pressure	18Bar
Blasting Pressure	60Bar
Wall Thickness	≥2.0mm
Tare weight	13.5kgs
Valve	Optional
Relevant Products	Low pressure regulator, PVC hose, gas stove, Cast iron stove

Daly Cylinder LPG Gas Cylinder Available in a Wide Range of 3kg, 5kg, 6kg, 11kg, 12kg, 15kg Sizes

General Product Information
Max Filling Quality (KG)	Water Capacity(L)	Cylinder Body Dimension			Shield Dimension			Base Ring Dimension
		Diameter(mm)	Nominal Thickness (mm)	High	Diameter(mm)	Height (mm)	Thickness (mm)	Diameter(mm)	Height (mm)	Thickness (mm)
LPG-3KG	7.3	210	2.0	264	160	120	2.5	190	35	2.5
LPG-5KG	12.0	250	2.3	310	160	120	2.5	190	35	2.5
LPG-6KG	14.4	300	2.3	268	272	65	2.3	303	62	2.3
LPG-10KG	24.0	310	2.5	392	170	125	2.5	233	40	2.5
LPG-12.5KG	26.2	300	2.75	452	230	145	2.3	303	62	2.3
LPG-15KG	35.5	320	2.95	524	190	153	3.25	240	53	3.25
LPG-20KG	48.0	300	2.75	770	190	153	3.25	303	62	2.3
LPG-50KG	118.0	406.8	3.4	1024	240	150	3.25	400	120	3.4

FAQ
Question 1. How to ensure your cylinders quality?
A: Our factory was founded in 1981, we have ISO9001, BV, CE, and approved by the Administration of quality of supervision, Inspection and Quarantine (AQSIQ) of China. Dali is an appointed manufacturer of LPG cylinders and pressure vessels. Moreover, Dali is a deputy director's unit of the China Association-Professional Committee of Chinese LPG cylinders.
We have 9 pressure vessel production lines, which are of the most advanced technology in the industry and furnished with early 400 machinery and equipment (including advanced x-ray real-time Image Inspection System, Spectrum Analyzer, and other inspection equipment).

Question 2. What's your production capacity?
A: We have 9 production lines, in full production capacity, we can supply 5 million cylinders annually / 400,000 cylinders per month.

Question 3. What's Daly Main Sales Products?
A: We mainly supply LPG cylinder, valve and other parts of cylinder.

Question 4. How about the sample?
A: In our acceptable range, we can offer a sample by charging freight, and we will return the fee to your after you make an order.

Question 5. How about the payment and delivery time?
A: The payment term: 30% for deposit, balance copy of BL; L/C at sight.
Question 6. How do you make our long-term business and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers' benefit.
2. We will have professional engineers and advanced production equipment, will offer you as much support as we can to help you occupy more market.

---
