MID Approval DN50-DN500 Turbine Type Bulk Woltman Water Meter

Product Description

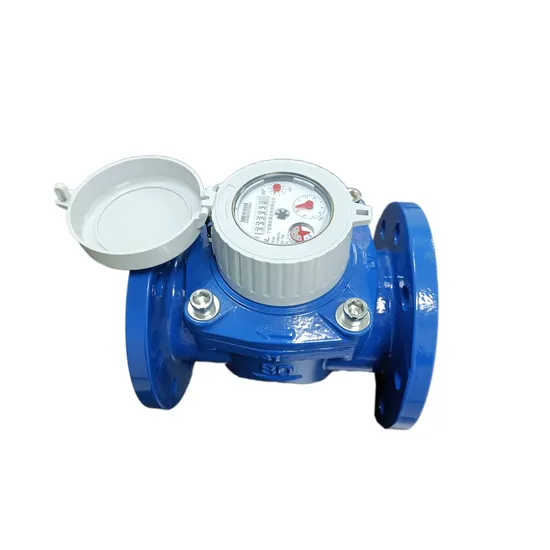

WP-SDC is TURBINE Woltaman water meter with magnetic transmission, super dry type register for Industrial and Irrigation
application has the sizes from Dn40 to Dn500 designed by DZS and meets to the requirements of Directive 2004/22/EC
on measuring instruments and of European Standard EN14154

DN	40	50	65	80	100	125	150	200	250	300	350	400	500
L	260	200	200	225	250	250	300	350	450	500	500	600	800
H	225	252	262	272	282	297	341	371	480	516	560	647	785
H1	303	339	349	359	369	384	428	458	576	603	603	723	838
G	360	400	400	400	400	400	500	500	710	730	730	830	930
D	150	165	185	200	220	250	285	340	405	460	520	580	715
D1	110	125	145	160	180	210	240	295	355	410	470	525	650
n×M	4×M16			8×M16			8×M20	12 × M20	12×M24		16×M24	16×M27	20×M30

L1 : the total length with connection and the gasket without compression.
Option: Different length of the Water Meter under different size.Option: Dn50 with Flange Ends and Screw Ends both in Brass
body and cast iron product body.

DN	mm	15	20	25	32	40	50
R	Q3/Q1	160				160
Q4	m3/h	3.125	5	7.875	12.5	20	31.25
Q3	m3/h	2.5	4	6.3	10	16	25
Q2	l/h	25	40	63	100	160	250
Q1	l/h	15.625	25	39.375	62.5	100	156.25
Max. reading	m3	99 999.9999 999 999.9999
Min. reading	Liter	0.05
Pressure loss	△p	△p<63
Max, Pressure	MAP	MAP16
Max, Temperate	ºC	T30 / T50

Q: What is your payment term?
A: 1.T/T,30% down payment, balance to be paid before shipment. 2.L/C.
Q: What is your main market?
A: Southeast Asia,Middle East ,South America,Europe etc.
Q: How about your capacity?
A: 50000pcs/month
Q: Can you give me a discount?
A: As you know, we are manufactory,so please believe us our price is competitive. If the quantity is big,we can consider give you
a discount.

Q: Can i get free samples from your factory?
A: Yes,samples can be free,however, freight has to be charged.
Q: If products have some quality problem,how would you deal with?
A: We will responsible for all the quality problems.

---
