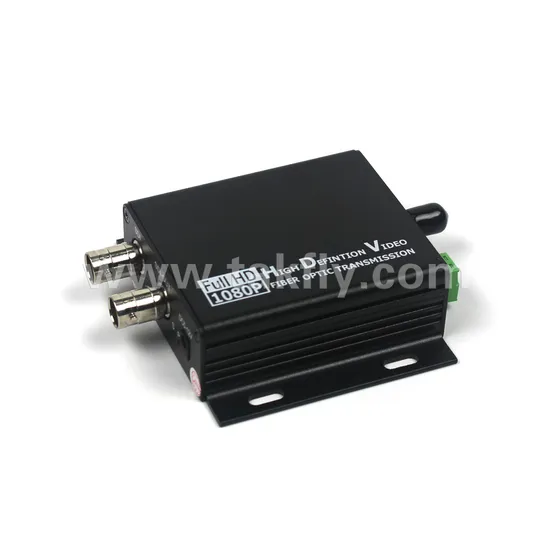

2CH 1080P Resolution Video Fiber Optic Transceiver

Product Description

2CH 1080P Resolution Video Fiber Optic Transceiver
Product characteristics:
1. Advanced lightning protection design,support 5.7KV lightning protection;
2. Industrial design, SMT technology;
3. Digital optical fiber transmission platform,multi service platform with flexible configuration;
4. Provide desktop plug-in frame, concentratedin 2 ways;
5. Independent intellectual property rights oflarge scale integrated circuit core;
6. Single fiber transmission,Optional 20KM, 40KM, 60KM, 80KM,100KM, 120KM long distance transmission.
7. Support 30 million standard video and1280X720P/30Hz and1280PX960P/30Hz and 1280X 720P/50Hz and 1920X1080P/30HZ resolution pixel camera, analog coaxial HDvideo, studio grade transmission quality.
8. Uncompressed video transmission real-timetransmission, to guarantee the best effect;
Technical Parameter:

Video parameters	Video input and output impedance	75Ω(non-equilibrium)
	Standard video input / output voltage	1.0Vp-p Type
	Support camera pixels	30million,100million,130million,200 million
	Video pixel	Standard clear video 1280(H)* 720(V)/30Hz 1280(H)* 720(V)/50Hz 1280(H)* 960(V)/30Hz 1920(H)* 1080(V)/30Hz
	Differential gain(10%-90% APL)	<±1% Type
	Differential phase (10%-90% APL)	<±1% Type
	Signal to noise ratio	>60dB(8Bit)
	Channel physical interface	BNC
optical parameters	wavelength	1310nm&1470nm-1610nm
	Fiber type	50/125umultimode,62.5/125umultimode,9/125usingle mode
	optical output power	-3~-9dBm
	Receiver sensitivity	-26dBm
	Optical Connectors	FC,ST,SC
General parameters	Working power supply	110V~240V AC adaptive
	Operation Humidity	0~95%
	working temperature	-0~60
	storage temperature	-40~85

Ordering Information:

Product	Description	Company	Product model
2ChVideo Optical Transmitter	2ChVideo, support 720P,960P,1080p, support HD-AHD,HD-CVI,HD-TVI	pair	DF-2V-1080P
2 ChVideo 1Ch Reverse Data Optical transmitter	2ChVideo, support 720P,960P,1080p, support HD-AHD,HD-CVI,HD-TVI ,support 1Ch Reverse Data	pair	DF-2V1D-1080P

Any question about this item, please leave me an inquiry or contact me directly.

---
