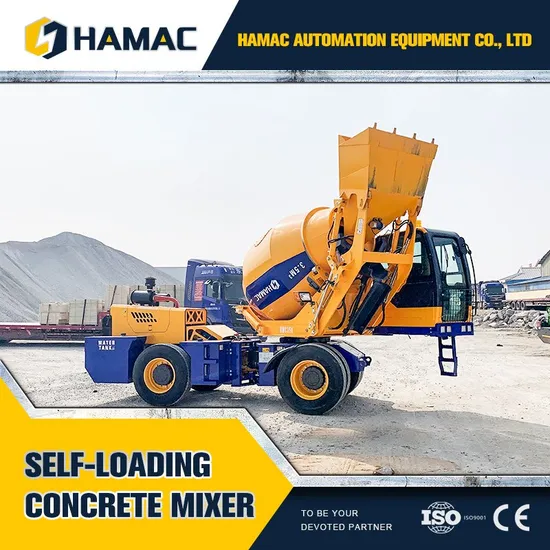

Manufacturer Mobile Self Loading Concrete Mixer Machine 4m3 Diesel Mini Small Cement Truck Mixer

Product Description

Famous brand engine YUCHAl
and CUMMINS as options;
Equipped with famous brand
hydraulic system for
stable work performance;
All the functions controlled by
joystick and buttons. An electronic
weighting system and printer is available,
The weighing scales monitor
is at the operator's convenience
to certify 100% quality concrete is produced.
Equipped with hydraulic cylinder
to lift the rear part of mixing
drum to increase the discharging
speed;
Equipped with vibrator on the
feeding hopper to avoid sand
sticking to inner wall of hopper;
Equipped with double stage air
filter to protect the diesel engine,
Equipped mixing paddle inside,
specially designed for dry mixing process;
Water pump has the ability to
draw water from any water
source. Water is pumped
through the flow meter to
ensure the right amount of water is
added into the mixer drum.
Equipped with high pressure washing system,
you can make the machine clean
immediately after finishing concrete pouring;
Well-decorated cabin
for driver equipped with
air conditioner; more comfortable;The vehicle is equipped
with cameras to monitor
the surrounding area in
real time to ensure the safety
of you and the surrounding area.

Name	Item	Specification
	Net	8800 KG
	Transmission	Full Hydraulic, 4 wheel drive
	Brake	Air Brake
	Chassis	Off-road, double tyres of front axle, with AC,
	Loader bucket	capacity	0.6m3
		Control	Hydraulic
	Tilt angle	20%
	Speed	High	0-30 KM/H
		Low	0-9 KM/H
	Mini turning radius	5300mm
Engine	Type	YUCHAI
	Rated Power/RPM	85KW/2200RPM
	Max. Torque/RPM	410N.M/2400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Geometric Capacity	4740 L
	Discharge capacity	3500L
	Bank Angle	16 °
	Rotation Angle	270°
Chute	Swing Angle	≥50°
	Angle control	Hydraulic
Loader control	Hydraulic 4 way stick
Dimension	7600x2800x4180 mm

---
