X6330A Universal Metal Variable Speed Milling Machine

Product Description

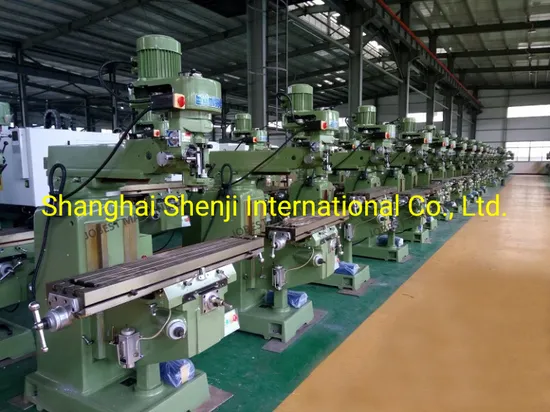

X6330A Turret Milling Machine
Milling Machine main performance characteristics:
Main features:
1.High rigidityand quality casting iron, and saddle guide-way is coated by TF-material.
2.Variable speed milling head made in Taiwan, step speed milling head and inverter millinghead can be equipped as optional accessories.
3.X/Y/Z-axisscrew are made in Taiwan with good smooth and reliable features.
4.Table surfaceis treated specially to harden HRC45-55.
5.X/Y/Z-axisguide way surface are treated specially to harden HRC45-55.
6.Standardelectrical box with domestic brand electronics components, we also can selectoptional SIEMENS and SCHNEIDER brand.
5HP milling head from Taiwan
Leadscrew from Taiwan SHIYMIN
Guideway with Tuicite B cover
ISO40 spindle
Spindle bearing with P4 class

Model		unit	X6330	X6330A
Worktable size		mm	305*1370(12*54)	305*1500(12*60)
Worktable longitudinal trabel		mm	870	1000
Worktable cross travel		mm	380
Worktable vertical travel		mm	430
T- slot No. and size			3*16
Ram travle		mm	500
Distance from spindle nose to table surface		mm	0-350
Spindle hole taper			Standard:ISO40
Spindle travel		mm	127
Spindle speed		mm/min	Standard: Step speed 16 steps: 50HZ 65-4500,60HZ 80-3750
			Optional:Stepless:65-3750
Auto. Quill feed		mm	3 steps:0.04(0.0015)/0.08(0.003)/0.15(0.006)
Spindle motor			3.75kw/5hp
Head swivel			90°
Head tilting			45°	Fixed type
Packing dimension	One miller per case	mm	1566*1650*2080
	Two miller per case	mm	1720*1800*2175
	three miller per case	mm	1650*2285*2235
G.W/SET		kgs	1700	1750

Specifications:

Item / Model	Unit	X6333	X6333A
Table size	mm	330×1370(13×54") 330×1500(13×58")
T-slot Nu.& size		3 × 16
Table longitudinal travel	mm	820(1000)
Cross travel	mm	380
Knee vertical travel	mm	460
Distance from spindle to table	mm	0-450
Ram travel	mm	500
Spindle taper		ISO40
Quill travel	mm	127
Spindle peed	r/min	50HZ:65-4500 60HZ:80-5440
		(optional variable):60-3600
Quill feed rate	mm/rev	0.04/0.08/0.15
motor power	kw	3.7
Head swivel (Right / Left)	degree	-90/+90
Head swivel (up / down)	degree	-45/+45	(Fixed)
Packing size	mm	1set/pallet 1800×2020×2200
		2set/pallet 1800×2200×2200
G.W.	kg	2200	2250

---
