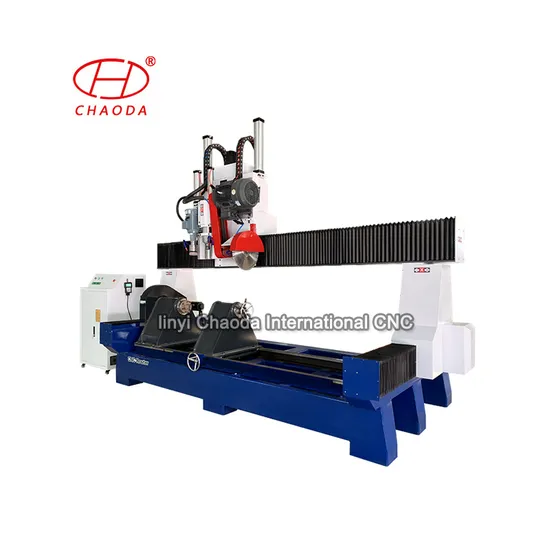

High Precision 3D Stone CNC Cutting Milling Machine Rotary

Product Description

high precision 3d stone cnc cutting milling machine rotary
Heavy duty steel structure, keep machine with very good stability. Adopt good quality machine parts,to make machine with high performance and durability. With electrical spindle, to make engraving. With saw blade unit, to make fast roughing/grooving. The big rotary device can process different kinds of 3d roman columns corbel pilasters cylinders pillars. The working size can be customized according to customers' specific requirements. There are 3 axis/5 axis same machines for choosing.

Model No.	JCS8017R
Lathe bed	heavy duty steel structure
Working size	800mm diameter, 1700mm length
Spindle power	5.5 /7.5 /11KW
Spindle rotating	12000 /18000 /24000rpm
Max.travelling speed	30m/min
Max.working speed	15m/min
Control system	DSP/Nsctudio
Motor	Stepper /Servo
Saw blade unit	yes
Polishing pad unit	yes
Auto oil system	yes
Voltage	AC380v,3 phase,50Hz

It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone,Travertine,
Quartzite, Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam,
Aluminum composite panel, Aluminum block, Copper and so on.
Application: Marble Granite Stone Roman Columns Corbel Pilasters Cylinders Pillars...
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas

---
