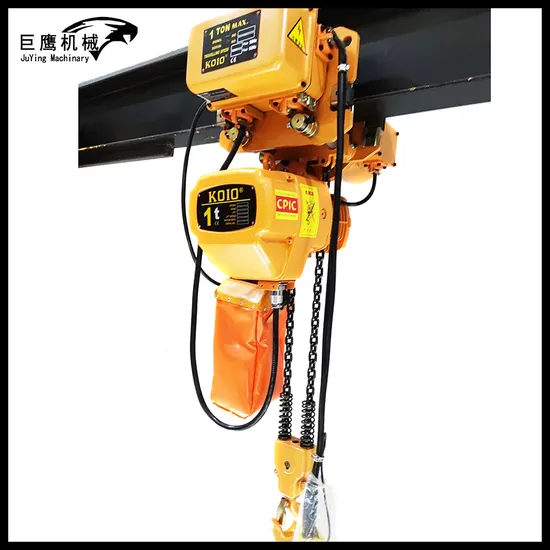

Dual Speed Hhbb Chain Electric Hoist with Wireless Remote Control

Product Description

1. Enclosure: The casing is light and sturdy. High heat dissipation. The fully sealed design is suitable
for use in environments with poor working conditions.
2. Reverse phase protection device: It is a special electrical device.
When the power supply wiring is wrong, the control circuit cannot work.
3. Limit switch: There is a limit switch device for lifting and lifting the heavy object, so that the motor
stops automatically to prevent the chain from exceeding and ensuring safety.
4. Low-voltage handle switch: The handle low-voltage control 36V device can prevent accidents
when the switch leaks during operation.
5 Brake device: The brake is braked by disc DC electromagnetic field, the braking torque is large,
stable, rapid and low noise.
6. Chain: 80 grade super heat-treated alloy steel chain makes the chain more tough and more
durable. It ensures safety during work.

Product Parameters

Model HHBB	Wll (T)	Height (M)	Speed (M/Min)	Lift motor				Travelling speed			I-beam (mm)
				Power (Kw)	Phase	Volt (V)	Frequency (Hz)	Power (Kw)	Speed (M/Min)	Volt (v)
01-01	1	3	6.8/2.3	1.5	3	380	50	0.4	11/21	380	68-130
01-02	1	3	3.9/1.2	1.1	3	380	50	0.4	11/21	380	68-130
02-01	2	3	6.8/2.2	3.0	3	380	50	0.4	11/21	380	82-153
02-02	2	3	3.4/1.1	1.5	3	380	50	0.4	11/21	380	82-153
03-01	3	3	5.6/1.8	3.0	3	380	50	0.75	11/21	380	82-153
03-02	3	3	5.8/1.1	3.0	3	380	50	0.75	11/21	380	82-153
05-02	5	3	2.8/0.9	3.0	3	380	50	0.75	11/21	380	100-178
