1800c Four Source High Vacuum Evaporation Coating Equipment for Depositing Metal Films

Product Description

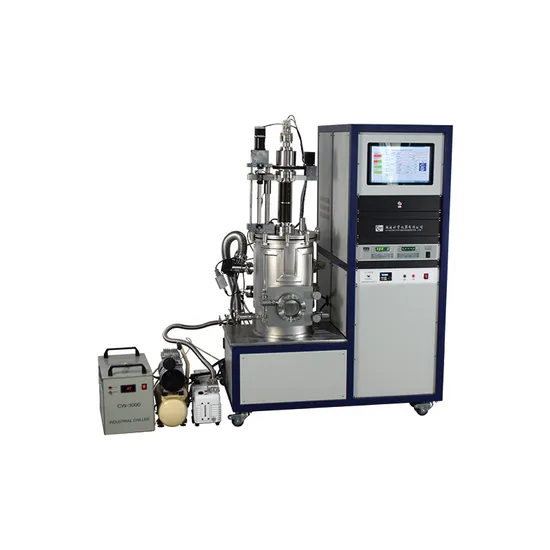

1800C Four source high vacuum evaporation coating equipment for depositing metal films
Introduction of Four source high vacuum evaporation coater:
This equipment is a four-source high-vacuum evaporation coater. The equipment adopts a front-opening door vacuum chamber design. In addition, the chamber is increased to 500mm. The distance between the sample stage and the evaporation source has a larger adjustment range, which can adapt to various evaporation needs. It avoids the sample being damaged by the high temperature of the evaporation source.
The chamber adopts an top sample stage, the sample stage can be rotated, heated and lifted, and all operations can be integrated and controlled through the touch screen. The equipment vacuum system is a two-stage vacuum system composed of a two-stage rotary vane pump and a turbo molecular pump, which can provide a clean and oil-free high vacuum environment. The equipment is equipped with a pneumatic valve system. Through the automatic control of the operating system, the user can perform operations such as one-button vacuum pumping, non-stop take out and place sample, and complete shutdown from the touch screen.
The equipment is equipped with four sets of tungsten boat evaporation sources and water-cooled copper electrode. Each evaporation source supports a large current of 100A and a heating temperature of 1800ºC. It can realize multi-layer coating or mixed coating of multiple materials.
Technical parameters of Four source high vacuum evaporation coater:

Four source high vacuum evaporation coating equipment
Sample stage	Size	Maximum support φ150mm samples	Height	Adjustable up and down 140mm
Evaporation source	Quantity	Tungsten Boat x4
Vacuum chamber	Chamber size	φ325mm x 510mm	Observation window	Front φ100mm with shading plate
	Chamber material	304 stainless steel	Open method	Front door opening
Film thickness control	Crystal oscillator type film thickness measuring instrument, optional multi-channel film thickness controller
Vacuum system	Backing pump	Two stage rotary vane pump	Pumping port	KF16
	Secondary pump	Turbomolecular pump	Pumping port	CF160
	Vacuum measurement	Resistance + ionization Compound vacuum gauge	Exhaust rate	Mechanical pump 1.1L/s
	Ultimate vacuum	1.0E-5Pa	Power supply	Molecular pump 600L/s
Control system	PLC automatic control Operation interface: touch screen + operation panel
Others	Supply voltage	AC220V,50Hz	Overall size	1000mm x 800mm x 1500mm
	Total power	10kW	Total Weight	350kg

Detail pictures of Four source high vacuum evaporation coater:
Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use ****** Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service

---
