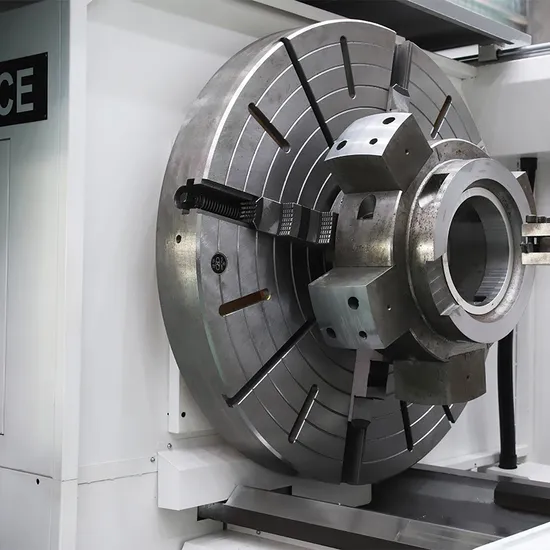

Ck61140/6000 Automatic CNC Flat Bed Lathe Machine

US$80,000.00-200,000.00 1 SET (MOQ)

Basic Info.

Model NO.
CK61140/6000
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.03mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
1400mm
Spindle Bore
130mm
Spindle Speed
2.5-250r/Min
Controls
Fanuc or Simens or GSK
Turret
4 Way Toolpost
Max. Weight of Workpiece
6000kg
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
180 Sets/ Year

Product Description

CK61140/6000 Automatic CNC Flat Bed Lathe Machine
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS


ITEMS		 CK61140 CK61160

Max. swing over bed		 Φ 1400 mm Φ 1600 mm

Max. swing over carriage		 Φ 990 mm Φ 1190 mm

Width of bed		 970 mm

Maximum length of workpiece		 1.5 /2 /3/4 /5/6/8/10m

Max. turning length		 1.3 /1.8 /2.8 /3.8/4.8/5.8/7.8/9.8 m

Max. weight between centers		 6000Kg

Spindle nose		 A2-15

Spindle bore		 Φ 130 mm

Cone hole diameter and taper of spindle hole		 Metric Φ 140 1: 20

Steps of spindle speed(Manual)		 24

Range of spindle spec		 2.5~250 r/min

Rapid feed for Z axis		 8m/min

Rapid feed for X axis		 5 m/min

Max. travel of Axis X		 820 mm 920 mm

Max. Input		 0.001 mm

Tool post stations		 4station

Tool cross section		 50× 50mm

External diameter of tailstock sleeve		 Φ 160mm

Taper of bore of tailstock sleeve		 Metric 80

Max. traverse of tailstock sleeve		 300mm

Spindle motor power		 22KW

Power of cooling pump		 370W

3m Overall dimensions(L× W× H)		 6200× 2280× 2130 mm 6200× 2280× 2300 mm

Net weight(3m)		 12700 13500
