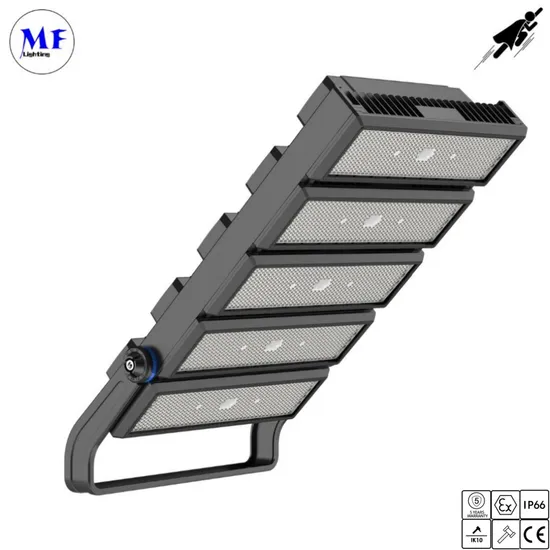

High Power Module 250W 500W 1000W 1250W 1500W Ik10 IP66 Outdoor Waterproof Tennis Sports LED Flood Light Stadium Light for Football Soccer Court

Product Description

High Power Module 250W 500W 1000W 1250W 1500W IK10 IP66 Outdoor Waterproof Tennis Sports LED Flood Light Stadium Light for Football Soccer Court
Feature
1.All-In-One Design to Perform:The new generation in LED sports & area lighting, create an unbelievable combination of world-class performance, energy saving, cutting-edge optical & thermal management technology and ongoing low maintenance cost in one sleek package solution
2.FLICKER-FREE/SLOW MOTION REPLAY:Slow Motion Replay can record exciting moments of the contestants. As the advantage of hi-definition camera technology, conventional 4K camera can reach 2000fps, adopt MW/Inventronic power supply, completely achieve the effect of flicker-free and meet the need of Slow Motion Replay
3.MODULAR DESIGN CONCEPT:SuperManll adopt modular design concept based on 250-300W per module, and maximum to 1500W with five modules.Racked angle make the light fixture can be adjusted to flexiblycontrol the light, equipped with laser aimer for precise aiming atthe field.
Thanks to the modular design, SuperMan ll applies to all kindsofstadiums, sports venues, airport, ports etc.
4.LOW WIND RESISTANCE, HIGH PROTECTION:Thanks to the modular design,the combination between eachmodule is not completely closed, which can reduce the overallEPA, SuperMan llis up to lP66 and lK10, meanwhile it isequipped with wire guard to realize ball-proof, safety rope fordouble protection
SuperMan ll integrate builtin 10KV surge protection device,alternative for 20KV
5.CUTTING-EDGE THERMAL MANAFEMENT SYSTEM:The lifespan and reliability of the light fixture are largely depend onthe thermal management system, which include three passivecooling method, conduction,radiation and convection. Fin-designincreases the heat dissipation & conduction areas, it is much moreconductive to heat dissipation, performance and lifespan
SuperMan llhas strictcontrol in LED temperature rise of nodes.to protectits excellen treliability
6.SPILL LIGHT-FREE:There are many suburban sports ground surrounded mainly byresidential homes which spill lighting seriously affect the daily life ofthe resident.
SuperMan ll have designed asymmetrical optical lens, which thelight projection will focus on the sports ground without spill light to residential homes or surrounding areas.
7.GLARE-FREE:Glare control is an important criterion in contemporary stadiumlighting design.Excellent glare control not only allow contestantsto play at a high level, but also facilitate the shooting of cameraand enhance the visual experience of on-site audience.
SuperMan ll equipped with conventional visor and unique-designed opticallens achieve a glare-free feeling
8.HIGH CORROSION & RUST RESSISTANT:Salt mist is the key cause to rust and corrosion of the light fixture.which will decrease the structure strength, reliability and lifespan orevenlead to security incident, especiallyfor coastal areas, such asport, wharf etc.
SuperMan llhas multi-ways for high anti-corrosion treatment tomeet 1000/2000/3000H neutral salt spray by AkzoNobel powdercoating,electrophoresis,triple powder coating etc.
Specification
SuperMan II Family Plan A 150lm/w

Model No.	MF-QCD-H250W	MF-QCD-H500W	MF-QCD-H750W	MF-QCD-H1000W	MF-QCD-H1250W
Light Source	440*PCT2835/126*SMD3737	880*PCT2835/252*SMD3737	1320*PCT2835/378*SMD3737	1760*PCT2835/504*SMD3737	2200*PCT2835/563*SMD3737
LED Brand	Lumi1eds/0SRAM
Driver Brand	MW/SOSEN	MW/SOSEN	MW/SOSEN	MW/SOSEN	MW/SOSEN
Rated Power (W)	240W	480W	720W	960W	1200W
Input Voltage (V)	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz
Output Voltage(V)	48	48	48	48	48
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
THD	<10	<10	<10	<10	<10
Luminous Flux (Im)	36,000 ±5%	72,000 ±5%	108,000 ±5%	144,000 ±5%	180,000 ±5%
CCT (K)	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700
CRI (Ra)	>70/>80/>90	>70/>80/>90	>70/>80/>90	>70/>80/>90	>70/>80/>90
Beam Angle	10/25/45/60*/90°/65*25°	10/25/45/60/90/65*25°	10/25°/45/60/90°/65*25°	10/25°/45/60/90/65*25°	10/2545/60/90/65*25°
IP Class	IP66	IP66	IP66	IP66	IP66
IK Class	IK08/IK10	IK08/1K10	IK08/IK10	IK08/IK10	IK08AK10
Outer Carton (mm)	630*330*230	630*520*230	630*680*230	630*840*230	630*1000*230
Net Weight (kgs)	7	14	20	26	32
Gross Weight (kgs)	7.5	15	22	28	35

SuperMan II Family Plan B 170lm/w

Light Source	440*SMD3030/126*SMD3737	880*SMD3030/252*SMD3737	1320*SMD3030/378*SMD3737	1760*SMD3030/504*SMD3737	2200*SMD3030/630*SMD3737
LED Brand	LumiIeds/0SRAM
Driver Brand	MW/SOSEN	MW/SOSEN	MWISOSEN	MW/SOSEN	MW/SOSEN
Rated Power(W)	240W	480W	720W	960W	1200W
Input Voltage (V)	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz
Output Voiltage(V)	48	48	48	48	48
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
THD	<10	<10	<10	<10	<10
Luminous Fkux (im)	40,800 ±5%	81,600 ±5%	122,400 ±5%	163,200 ±5%	204,000 ±5%
CCT (K)	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700
CRI (Ra)	>70/>8/>90	>70/>80/>90	>70/280/>90	>70/>80/>90	>70/>80/>90
Beam Angle	10/25*/45/60*/90/65**25*	10*/25*/45/60/90/65*25*	10*/25*/45*/60*/90/65*25*	10/25/45/60/90/65**25*	10/25*/45/60/90*/65*25*
IP Class	IP66	IP66	IP66	IP66	IP66
IK Class	IK08/IK10	IK08/K10	IK08/IK10	IK08/1K10	IK08/IK10
Outer Carton (mm)	630*330*230	630*520*230	630*680*230	630*840*230	630*1000*230
Net Weight (kgs)	7	14	20	26	32
Gross Weight (kgs)	7.5	15	22	28	35

SuperMan II Family Plan C 150lm/w

Light Source	440*SMD3030/126*SMD3737	880*SMD3030/252*SMD3737	1320*SMD3030/378*SMD3737	1760*SMD3030/504*SMD3737	2200*SMD3030/630*SMD3737
LED Brand	LumiIeds/0SRAM
Driver Brand	MW/SOSEN	MW/SOSEN	MWISOSEN	MW/SOSEN	MWISOSEN
Rated Power (W)	300W	600W	900W	1200W	1500W
Input Voltage (V)	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz
Output Voltage(V)	48	48	48	48	48
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
THD	THD<10%	THD<10%	THDK10%	THD<10%	THDK10%
Luminous Fkux (im)	45,000 ±5%	90,000 ±5%	135,000 ±5%	180,000 ±5%	225,000 ±5%
CCT (K)	3000/4000/5000/5700	3000/4000/5000/5700	300/4000/500/5700	3000/4000/5000/5700	3000/4000/5000/5700
CRI (Ra)	>70/>80/>90	>70/>80/>90	>70/>80/>90	>70/280/290	>70/>80/290
Beam Angle	10/25*/45*/60*/90*/65**25*	10/25/45*/60/90*/65**25*	10*/25/45*/60*/90*/65*25*	1025*/45/60*/90/65**25*	10/2545/60/90/65**25*
IP Class	IP66	IP66	IP66	IP66	IP66
IK Class	IK08/IK10	IK08/AIK10	IK08/IK10	IK08/K10	IK08/IK10
Outer Carton (mm)	630*330*230	630*520*230	630*680*230	630*840*230	630*1000*230
Net Weight (kgs)	7	14	20	26	32
Gross Weight (kgs)	7.5	15	22	28	35

Dimension
Accessory
Photometry
As a professional led lighting factory,we can do asimulation for you with a perfect lighting solution. Characteristic
EXCELLENT HEAT DISSIPATION AND LIFE-SPAN ASSURED
The lifespan and reliability of LED fixtures largely depend on thermal management system which includes threepassive cooling methods, conduction, radiation, and convection, Die-casting module design increases heatdissipation areas and conduction areas. lt is much more conductive to heat dissipation, performance, and lifespan
Application
LED High Mast Flood Lights are widely used in various applications that require high-intensity lighting over large outdoor areas. One prime example of their application is in sports stadiums. These lights are strategically installed on high masts surrounding the stadium, providing bright and uniform illumination across the playing field and spectator areas. The powerful beams of light ensure optimal visibility for players and spectators, allowing for evening and night-time sporting events to take place. Another significant application of LED High Mast Flood Lights is in airport lighting. These lights are installed along runways, taxiways, and aprons to ensure safe and efficient aircraft operations during low light conditions. The high mast design and superior light output of LED flood lights allow for clear visibility, aiding pilots in navigation, landing, and takeoff procedures. Furthermore, LED High Mast Flood Lights find extensive use in industrial complexes, shipping ports, and construction sites. These areas often require high-intensity lighting to ensure the safety and productivity of workers during night shifts. The broad and powerful illumination provided by these lights helps in enhancing visibility, improving security, and facilitating smooth operations in these challenging environments. Overall, the application of LED High Mast Flood Lights extends to a wide range of outdoor settings, including sports stadiums, airports, industrial areas, and construction sites. Their energy efficiency, durability, and superior lighting capabilities make them an ideal choice for illuminating large outdoor spaces, enabling improved visibility, safety, and functionality in various industries and activities.
Stadium,Wharf,Airport, Dock, Tower Crane, Large Outdoor Parking Lot, Football Field, Basketball Court, Tennis Court, Golf Course etc.• Outdoor Sports • Soccer Fields • Stadium • Airport/Seaport • Parking Lots • Exhibition Center • Golf course • High Mast Stadiums and Arenas Construction Sites Hangars Bridges, Monuments and Facades Rail, Work and Shipping Yards Large Distribution Centers
1.Sports Events: LED Stadium Lights are commonly used to illuminate sports events such as football, baseball, soccer, and basketball games. They provide bright and uniform lighting, ensuring clear visibility for players, referees, and spectators. 2.Concerts and Performances: LED Stadium Lights are also utilized in stadiums for concerts, music festivals, and other live performances. They create dynamic lighting effects and can be synchronized with the music to enhance the overall atmosphere and stage presence. 3.Broadcasting and Televised Events: LED Stadium Lights play a crucial role in televised sports events. Their high-quality lighting ensures that cameras capture clear, vibrant images for viewers at home. 4.Outdoor Arenas and Stadiums: LED Stadium Lights are suitable for outdoor arenas and stadiums due to their durability and resistance to weather conditions. They can withstand rain, wind, and extreme temperatures while maintaining consistent and reliable illumination. 5.Training Facilities: LED Stadium Lights are used in training facilities for various sports. They provide optimal lighting conditions for athletes to practice and improve their skills, offering a safe and well-lit environment. 6.Recreational Facilities: LED Stadium Lights are employed in recreational facilities such as community sports fields, parks, and playgrounds. They allow for extended playing hours, enabling individuals to engage in outdoor activities even after sunset. 7.Special Events and Celebrations: LED Stadium Lights are often employed for special events and celebrations held in stadiums, such as fireworks displays, parades, and cultural festivals. They add a festive and vibrant ambiance to the venue. 8.Safety and Security: LED Stadium Lights contribute to the safety and security of stadiums by providing well-lit areas for spectators, staff, and emergency personnel. They help prevent accidents, deter criminal activities, and facilitate crowd management. 9.Sponsorship and Branding: LED Stadium Lights can be customized to display adv
Matters needing attention
Before installing the lighting fixtures, please read this instruction manual carefully. 1. The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations. 2. Lamps should always be installed or replaced carefully. 3. Please check the local voltage in accordance with the product requirements before installation. 4. Revamping only can be done when the power is off and the lamp is completely cooled down. 5. When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly. 6. Don't cover the fixtures with flammable materials. 7. Replace should be made by the manufacturer or his service agent or certified electrician in order to avoid a hazard.

---
