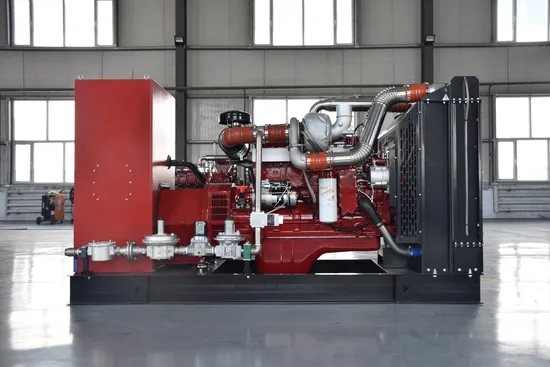

AC Three Phase Gas Ysd Genset Power Biogas Generator Set Natural Gas Biomass LPG Gas Genset with High Quality

US$31,571.00
1-2 Sets
US$29,142.00
3-9 Sets
US$25,142.00
10+ Sets

Basic Info.

Model NO.
WL150
Output Type
AC Three Phase
Gas Source
Gas
Certification
CE, TLC, ISO, CCC
Power
50-200kW
Standard
Standard
Model
Wl150
Power Rating
150kw
Rated Speed
1500rpm
Frequency
50Hz
Rated Current
270A
Dimension
2850*1050*1500mm
Weight
1700kgs
Intake
Exhaust Water Cooled Turbocharged
Displacement
8.9L
Compression Ratio
12:1
Engine Oil Consumption
<0.3G/Kw.H
Exhaust Gas Temprature
625 Degree
Fuel Supply Method
Pre-Mix
Lubricating Oil Capacity
27L
Coolant Capacity
35L
Transport Package
Export Standard Packing
Specification
2850*1050*1500mm
Trademark
YSD
Origin
China
HS Code
8511509000
Production Capacity
5000 Set/Year

Packaging & Delivery

Package Size
315.00cm * 132.00cm * 185.00cm
Package Gross Weight
1800.000kg

Product Description


NO. ITEM Data
1 Model WL150
2 Basic Power(KW) 150
3 Back up power (KW) 150
4 Rated speed 1500rpm
5 frequency 50HZ
6 Rated current(A) 234
7 Dimensions(mm) 2850*1050*1500mm
8 Weight(kg) 1700
9 Rated voltage 400V/230V
10 Exhaust gas temperature(ºC) 625±50
11 Excitation mode brushless
12 Insulation class H
13 Protection level IP23
14 Voltage regulation mode automatic adjustment

Q1: Are you a trading company or do you operate a factory?
A: We are proud to operate a factory, allowing us to ensure the highest quality.
Q2: What's the warranty period for your products?
A: Our products come with a generous warranty of 1 year or 1500 running hours, whichever comes first. Enjoy peace of mind with the option to extend the warranty, catering to your specific requirements.
Q3: What is the power range of our gas generator set?
A: Our gas generator set offers a versatile power range from 30KW to 1500KW, designed to meet diverse energy needs.
Q4: What is the Minimum Order Quantity (MOQ)?
A: Our minimum order requirement is just 1 set, providing flexibility for your purchasing decisions.
Q5: What's the typical delivery time for orders?
A: Delivery timelines are flexible and can be negotiated to best suit your schedule.
Q6: Do you offer OEM/ODM services?
A: Absolutely! We offer comprehensive OEM/ODM services, tailoring production to your specific requirements.
Q7: What are your payment terms?
A: We require a 30% TT payment in advance, with the remaining balance due before delivery. This ensures a smooth transaction process.
