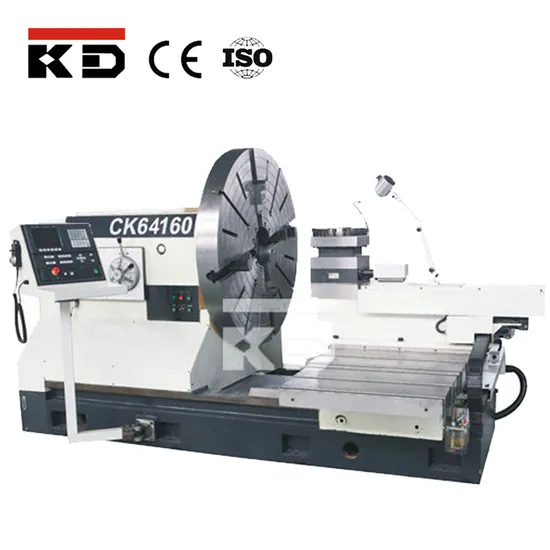

Precision CNC Horizontal Lathe Machine with Big Bore Capacity

US$3,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CK64160E
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
45000X2700X2200mm
Specification
3500x2600x2100mm
Trademark
kaida
Origin
Zhejiang
Production Capacity
180 Sets/ Year

Product Description


PRODUCT SPECIFICATIONS
MODELS
CK64160E
CAPACITY

Max.cutting dia of disc parts
Ф1500
Max.swing over carriage
Ф1000mm
Width of bed
1100mm
Max. length of workpiece
500mm
SPINDLE

Spindle nose
A2-15
Spindle bore
Ф130mm
Spindle tapper
Metric Ф140 1:20
Steps of spindle speed(manual)
2 steps (manual)
Range of spindle speed
2.5~34, 20~270rpm
FEED

Rapid feed for axis Z
6m/min
Rapid feed for axis X
12m/min
TRAVEL

Max travel of Z axis
480mm
Max travel of X axis
800mm
TOOL POST

Tool post stations
4
Distance from the main shaft center to the cutter installation surface
50mm
OTHERS

Min.input
0.001mm
Main motor power
22kw
Coolant pump power
250w
Overall dim,emsions(LxWxH)
3500x2600x2100mm
Net weight
11000kg
