US$21,000.00-32,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Max.Torque
206.9n*M/1100~1500rpm
Max. Digging Height
5785 mm
Max. Digging Depth
3850 mm
Max. Dumping Height
4075 mm
Min. Swing Radius
2395 mm
Min. Ground Clearance
300 mm
Transport Package
Nude Packing
Specification
6880*4130*3640mm
Production Capacity
5000pieces/Year
Product Description
Product Description

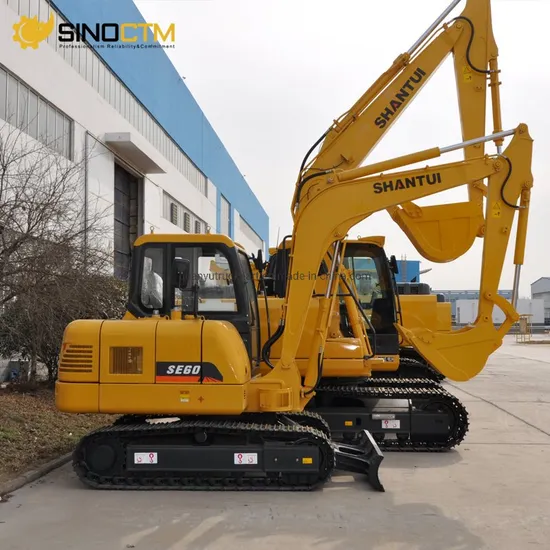

Cheap Mini Excavator Parts SE60 Prices Shantui 6 ton Crawler Excavator SE60
Original imported engine with Tier 2 emissions, conducive for energy saving and environmental protection; features radial seal air cleaner and air pre-cleaner, effectively extending engine service life.
Original imported hydraulics, with stable, reliable quality and high work efficiency. Strengthened working devices, new type cab and seat, air-con system, wide-field of vision, adding up to a safe and comfortable operating environment. Blade and breaking pipe are standard equipment for excavating, landfill, breaking and leveling. Multi-function GPS for remote monitoring and two-way data transmission, offers real time operating status.
Product Parameters
Parameter for Cheap SHANTUI SE60 Excavator
Engine
|
Engine model
| V2607T
|
Rated power
| 36kw/2000rpm
|
Max.torque
| 206.9N·M/1100~1500rpm
|
Displacement
| 2.615 L
|
Emission standard
| Tier 3
|
Operation Range
|
Operating weight
| 5960 kg
|
Max. digging height
| 5785 mm
|
Max. dumping height
| 4075 mm
|
Max. digging depth
| 3850 mm
|
Max. vertical digging depth
| 3000 mm
|
Max. digging reach
| 6200 mm
|
Min. swing radius
| 2395 mm
|
Dimensions
|
Overall length
| 5855 mm
|
Overall width
| 1880 mm
|
Overall height
| 2610 mm
|
Tail swing radius
| 1655 mm
|
Min. ground clearance
| 300 mm
|
Counterweight ground clearance
| 710 mm
|
Undercarriage/Working Device
|
Std. track shoe width
| 400 mm
|
Bucket capacity
| 0.22 m³
|
Carrier roller(per side)
| 1
|
Track roller(per side)
| 5
|
Track gauge
| 1480 mm
|
Boom length
| 3000 mm
|
Arm length
| 1600 mm
|
Performance
|
Travel speed
| 2.6/4 km/h
|
Gradeability
| 35°
|
Ground pressure
| 33 kPa
|
Tractive force
| 50 kN
|
Bucket digging force
| 48 kN
|
Arm digging force
| 32.3 kN
|
Service Refill Capacities
|
Fuel tank
| 95 L
|
Engine coolant
| 8.5 L
|
Engine oil
| 9 L
|
Hydraulic tank
| 74/110 L
|
Hydraulic System
|
Type
| Load Sensing Hydraulics with Variable Displacement Piston Pump
|
Pump flow
| 144L/min
|
Swing System
|
Swing speed
| 0-11r/min
|
The parameters are for reference only, please contact your sales representative for details.
|
ITEM
| UNIT
| SE60
| SE70
| SE80
| SE130
| SE210
|
Rated power
| kW/rpm
| 35.5/2200
| 9/440
| 3/110
| 31/793
| 112/1950
|
Engine
|
| 4TNV94L-SFN
| B3.3
| B3.3
| B3.9-C
| B5.9-C
|
Type
|
| 4-cylinder inline
| 4 cylinders inline
| 4 cylinders inline
| 4 cylinders inline
| 6-cylinder inline
|
Bore×stroke
| mm
| 94 x 110
| 95×115
| 95×115
| 102×120
| 102 x 120
|
Displacement
| L
| 3.054
| 3.3
| 3.3
| 3.9
| 5.9
|
Cooling
|
| Water-cooled
| Water cooled
| Water cooled
| Water cooled
| Water-cooled
|
Air filter
|
| Dry air filter
| Dry air filer
| Dry air filer
| Dry air filer
| Dry air filter
|
Fuel tank
| L
| 110
| 170
| 230
| 238
| 360
|
Throttle control
|
| Manual-/
| Electric control
| Electric control
| Electric control
| Manual-/
|
electronic-controlled
| electronic-controlled
|
Operating weight
| kg
| 5850
| 7100
| 7800
| 12800
| 20500
|
Bucket width
| mm
| 769
| 804
| 820
| 980
| 1189
|
Bucket capacity
| m3
| 0.22
| 0.28
| 0.32
| 0.55
| 0.9
|
Company Profile
Shantui Construction Machinery Co., Ltd., founded in 1980, was a national category I key enterprise integrating research & development, production and sales of main engine products and key components of earth moving machinery, pavement construction & compaction machinery, building machinery, hoisting machinery and other construction machinery series products.
Shantui owns a sound sales system and complete sales service network, and its products are sold all over the country and overseas in more than 150 countries and territories. At present, there are 26 Shantui monopolized stores and 150 marketing points. The international strategy is implemented stably; now, Shantui has 71 overseas Agents, as well as 10 overseas Subsidiaries in the United Arab Emirates, South Africa, Russia and Brazil. In the aspect of marketing service mode, it abides by the principle of "value leading and win-win service", introduces advanced concepts such as leading the industrial service promise, quality tracking and user care, provides solutions of whole set equipment construction for customers in time; and the humanized and punctual top-quality service help Shantui win customers' praise, thus enhancing brand value of the enterprise.
Six Free Services Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
Hot sale products
Packaging & Shipping
Detailed Photos
FAQ
Q1. What's your MOQ?A1. One unit.Q2. What is your terms of payment?A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.Q3. What is your terms of shipment?A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped by containersQ4. What is your terms of delivery?A4. EXW, FOB, CFR, CIFQ5. How about your delivery time?A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q6. Do you test all your goods before delivery?A6. Yes, we have 100% test before delivery
