CNC Machine Tools of CNC Lathe Manufacturer

US$49,880.00-53,832.00 1 Piece (MOQ)

Basic Info.

Model NO.
KDCL-30
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.03mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
650mm
Max Turning Length
1000mm
Spindle Bore
90mm
Spindle Nose
A2-8
Spindle Speed
2500rpm
Rapid Feed X Axis
16m/Min
Rapid Feed Z Axis
20m/Min
Turret
12-Station Hydraulic Turret
Tool Shank
25X25mm
Boring Tool Seat
40mm
Tapper of Tailstock Sleeve
Mt6
Main Motor
18.5/22kw
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
410 Sets/ Year

Product Description

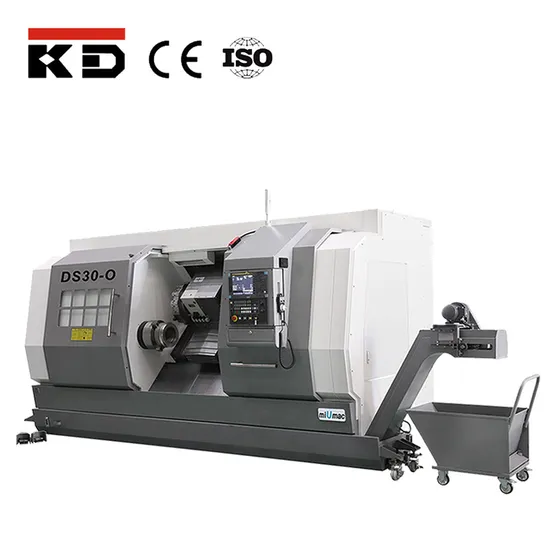

Milling CNC Machine Tools of CNC Lathe Manufacturer Product Features
Product Specifications
MODELS
KDCL-30
CAPACITY

Max.swing over bed
Ф650mm
Max.cutting diameter for disc parts
Ф500mm
Max.cutting diameter for axle parts
Ф320mm
Max. cutting length
1000mm
SPINDLE

Spindle bore
Ф90mm
Spindle nose
A2-8
Spindle speed
2500rpm
TRAVEL

X travel
270mm
Z travel
1060mm
FEED

Rapid feed for axis X
16m/min
Rapid feed for axis Z
20m/min
TOOL POST

Tool number
12 ways hydraulic turret
Outside diameter of cutting tool shank
25×25mm
Inner dia.of cutting tool shank
Ф40mm
TAILSTOCK

Tailstock sleeve dia.
Ф100mm
Tailstock sleeve travel
200mm
Taper hole of tailstock quill
M.T.No.6
OTHERS

Spindle motor power
18.5/22kw
Bed structure
45° slant bed integrated with stand
Min.input
0.001
Repeatability
≤0.006mm
Hydraulic chuck
12″
Overall dimensions(L×W×H)
4250×1980×2260mm
Net weight
7000kg
