WiFi Lte FDD Tdd 4G Router Supports Linux System or Openwrt

US$1.00-100.00 1 Piece (MOQ)

Basic Info.

Model NO.
HDRM100
Signal Type
Baseband Modem
Installation
Rack-Mounted
Clip Function
Mtk 7628
Interface Type
RJ-45
Transmission Rate
300Mbps
Application
Industrial, Enterprise, Household
Transport Protocols
FTP
Transmission Mode
Data Transfer
Power Supply
+5V~+48V/1A
Interface Port
1 Wan/1 LAN or 2 LAN Ports, One Console Port;
WiFi
WiFi High Quality Performance Without Congestion
Lte EU Frequency Bands
Lte FDD. B2,4,5,17
Memory
Flash 16mbyte, DDR2 64mbyte
Network Mode
Lte ,WCDMA,EVDO,GPRS,GSM,CDMA 1X
Embeddedsystem
Linux or Openwrt
Working Temperature
-40~+75
Antenna
2*2 4G/WiFi MIMO Antenna
CPU
Mtk 7628
Transport Package
Carton Packing
Specification
115mm*73mm*20mm
Trademark
Head Weblink
Origin
China
Production Capacity
100000set/ Month

Product Description

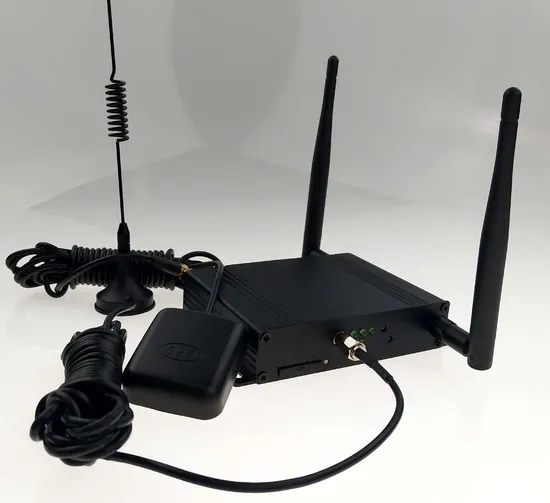

WiFi LTE FDD Tdd 4G Router supports Linux system or OpenWRT
• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2 4G/WIFI MIMO antenna;
• Integrate 3G/4G LTE,WIFI,GPS feature;
• WIFI High quality performance without congestion;
• 1 WAN/1 LAN or 2 LAN ports, One console port;
• With SIM card slot;
• Wide power supply: +5V~+48V/1A
• Remote management platform;
• Firmware version: Linux or Openwrt;
• Small size dimension:115mm*73mm*20mm
Item Product specification
CPU MTK7628
MEMORY FLASH 16MByte, DDR2 64MByte
Embeddedsystem Linux or Openwrt
Network FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X
WIFI WIFI 802.11 b/g/n, 300Mbps
Data rate 4g: CAT 3, DL 100bps , UL 50Mbps ( Or CAT 4 DL 150Mbps , UL 50Mbps)
WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps
GPRS DL/UL 85.6Kbps
WIFI Tx Power 14 dBm(11g),17 dBm(11b),14dBm(11n)
WIFI Rx Sensitivity <-70 dBm@54Mpbs
2G/3G/4G Transmitting Power GSM/GPRS: Class 4 (2W); GSM850,EGSM900 Class 1 (1W):
DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE:Class 3 (0.25W)
GPS GPS/GLONASS,Protocol: NMEA
WIFI Frequency 2.4G
Hardware interface 2*LAN 10/100Mbps, Console port(Be used as DTU, is available to connect serial devices)
RF connectors SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω
Security Encryption Support WEP,WPA,WPA2 encryption ways
Protocol PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP
LED Indicator "SYS", "Net", "WAN", "LAN",RSSI
SIM/UIM Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection
Key button Reset
Standard Power DC 12V/1A
Power Supply DC 5~48V
Working current 2A (Max Current)
Temperature Operating Temperature -40~+75ºC
Storage Temperature -45~+85ºC
Environment humidty 95%
Case Aluminum Alloy Shell
Size 115mm*73mm*20mm
Weight 160g
Frequency bands
2G Version GSM/GPRS 850/900/1800/1900MHz
3G Version WCDMA. 850/1900MHz, 850/2100MHz & 900/2100MHz EVDO 800MHz & 800/1900MHz
GSM. 850/900/1800/1900MHz
4G Version Version A LTE FDD. B2,4,5,17
UMTS. 850/1900MHz
LTE FDD. B1,3,7,8
Version C LTE TDD B38, B39, B40, B41
UMTS. 900/2100MHz
TD-SCDMA. 1880~1920MHz & 2010~2025MHz
GSM. 900/1800MHz
Version E LTE FDD. B1,3,7,8,20
LTE TDD B38, B40
UMTS. 900/2100MHz
GSM. 900/1800MHz
LTE FDD. B1,B3,B8,B18,B19
Version JC LTE TDD. B41
UMTS. B1,B6,B8
GSM. 900/1800MHz
Version JE LTE FDD. B1,B8
UMTS. B1,B8
GSM. 900/1800MHz
Seven-Band LTE-FDD B1/B3/B4/B5/B7/B8/B28
Version SA Tri-Band LTE-TDD B38/B40/B41
Qual-Band UMTS/HSDPA/HSPA+ B1/B2/B5/B8
Qual-Band GSM/GPRS/EDGE B2/B3/B5/B8
Data rates
3G LTE router WCDMA. DL 14.4Mbps, UL 5.76Mbps EVDO. DL 3.1Mbps, UL 1.8Mbps
4G LTE router FDD LTE. DL,100Mbps UL,50Mbps Or
TDD LTE. DL,50Mbps UL,25Mbps LTE Category 4 - 150 Mbps (DL)
WCDMA. DL 42Mbps UL5.76Mbps LTE Category 4 - 50 Mbps (UL)
TD-SCDMA. DL 2.8Mbps UL 2.2Mbps
