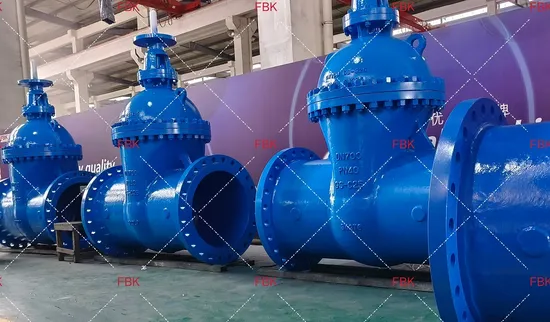

DIN 3352 Standard DN 700 Pn 40 Metal Seated Gate Valve

Product Description

VP's DIN Cast Steel gate valves is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum,chemical industry,pharmacy,chemical fertilizer,electric power industry,etc., nominal pressure of PN 1.6~16Mpa and working temperature range -110~600°C.All gate valves are meet the design requirements of DIN 3352,BS 1414 & BS EN 1984.Valves are available in a complete range of body/bonnet materials and trim.


Specification Size:DN 700
Pressure:PN 40
End connection:RF,RTJ,BW,FF

Main Material Casting Steel:WCB,WCC,WC6,WC9,LCB,LCC,CF8,CF3,CF8M,CF3M,CF8C,4A,5A,6A,CN7M,CW6MC,
CW12MW,CU5MCuC,C5,C12,M35-1
Forged Steel:A105,F11,F22,LF2,F304,F304L,F316,F316L,F321,Alloy 20
Special Alloy Steel:Inconel,Hastelloy,Monel

DIN Gate Valve Standard And Features Std:
1.Design & manufacture:DIN 3352,BS EN 1984
2.Flange END:DIN 2543-2547,BS EN 1092-1
3.Face To Face :DIN 3202,BS EN 558-1
4.BW ends:DIN 3202,BS EN 10627
5.Inspection & Test:DIN 3230,BS EN 12569

Feature:
1.This product has logical structure,reliable seal,excellent performance and design.
2.The seal surface is build-up welding with hard alloy,which is attrition-resistant,corrosion-resistant,has good friction and long life.
3.The stem is quenched and its surface is treated by nitriding treatment,thus it has good corrosion resistant and friction resistant.
4.It has double seal capability,which becomes more reliable.
5.The part material,flange and butt-weld ends dimension selected according to current operating condition and user's requirement to meet various engineer solution projects.
6.We use flexible graphite packing, reliable sealing, light and flexible operation.
7.Simple shape, short structure length and wide application range.

---
