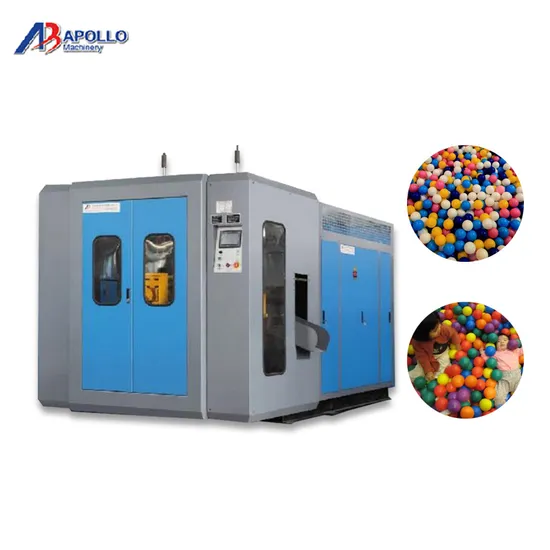

PP Plastic Ocean Ball Sea Balls Blow Molding Machine

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
ABLB65
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Max. Product Volume
2L
Screw Drive Power
18.5kw
Transport Package
Film Packaging
Specification
ABLB65
Trademark
APOLLO
Origin
China
Production Capacity
5 Set/Sets Per Month

Product Description

Product Description
Plastic blow moulding machine:
ABLB65 series full automatic blow molding machine with a auto-deflashing unit. It helps you save labor cost at 200%. A wide variety of materials can be used for this machine, which specialize in making various oil barrels and related bottles not over 2L. The clamping system is a high-precision single-station linear guide, extrusion system use a hard gear and inverter imported from Japan.
The die head system adopt central-incoming extrusion die made of special steel to ensure the quality of the products. Imported hydraulic valve and seal valve with proportional control valve. Control system consists of PLC and human machine interface imported from Japan.
The main technical parameter of this machine:

Max. Product volume

2 liters

Dry cycle

1000pc/h

Screw diameter

65mm

Screw L/D ratio

24 L/D

Screw drive power

18.5 KW

Screw heating capacity

5-6 KW

No.of heating zone

3 zones

Output of HDPE

80 KG/H

Oil pump drive power

7.5 KW

Clamping force

65 KN

Max.size of mold

148-568mm

Mold stroke

330X370mm

Max.die diameter

160mm

Blowing pressure

0.6mpa

Air volume

0.6 M³/MIN

Cooling water pressure

0.3mpa

Water consumption

50 L/MIN

The component of the machine:
Electronic Parts
Name Trader
Micro Computer Control System Japanese MITSUBISHI
Temperature Controller Japanese MITSUBISHI
Intermediate Relay OMRON
Contactor Schneider from France
Electric Motor Simens Bede
Servosystem Delta / MEGMEET
Power supply TAIWAN MEANWELL
Transducer ABB
Hydraulic Parts
Name Trader
Oil pump TAIWAN HIGH-TECH
Valve JAPAN YUKEN
Oil pump and connection JAPAN YUKEN
Sealed part HALLITE
Air Control System
Name Trader
Cylinder AIRTAC
Air Valve AIRTAC

Company Profile
Certifications
Detailed Photos
Exhibition
Customer photo
FAQ
1. Can the machine customized only for my products?Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request. 2. How about the molds ?APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional. 3. What is the business item for this project ?a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .b. Port of Loading: SHANGHAI, CHINA.c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.d. Container needed: One 20GP container. 4. How is APOLLO after-sales service?a. InspectionBefore delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval. Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and smoothly put into operation once reach the client`s factory.b. Debugging InstructionAPOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before Tonva`s engineers arrive at the buyer`s factory, the buyer must make sure that all of equipment are put in the correct position in their factory, the raw material, power and water supply must be ready in the factory.C. User TrainingAPOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients' factory to the users, so that they could understand the machine features and could operate the machine by themselves. 5. What is the warranty period?a. APOLLO machine Main parts is one year warranty with a lifelong maintenance.b. Mould within one year or 5 millions warranty.
