High Frequency UPS 6/10/15/20kVA Double Conversion Long Short Backup Internal External Battery Sine Wave Uninterruptible Power Supply Online UPS with LCD

US$493.82-548.42 1 Piece (MOQ)

Basic Info.

Model NO.
XG6-20kVA
Protection
Overvoltage
Application
Industry
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Large Type
Equipment Mode
Centralized Model
Brand
Kemapower
Size
710*440*860
Product Name
High Frequency Online UPS
Output Power Factor
0.8 or 0.9PF
Communication
RS232 or USB
Transport Package
Safety Packing
Specification
ISO / CE / UL
Trademark
KEMAPOWER
Origin
China
HS Code
8504402000
Production Capacity
500, 000PCS/Year

Packaging & Delivery

Package Size
360.00cm * 640.00cm * 760.00cm
Package Gross Weight
73.000kg

Product Description

High Frequency Online UPS
XG6-20K(S) 6-20KVA, 4.8-16KW
KEY FEATURES LCD High frequency sine wave online UPS 6K/ 10K/ 15K/ 20KVA DSP digital control double conversion technology, Zero transfer time Single phase, output Power Factor 0.8/0.9, adjustable VAC and HZ by panel Wide input voltage and frequency range, support Generator Advanced Input PFC technology, 0.99 Self-testing, and battery management function Automatic battery charging while UPS off mode Lightning, surge, Short circuit and overload protection, Alarm or Silence settable RS232 or USB communication with monitoring software SNMP, EPO, MBS are optionalTECHNICAL SPECIFICATIONS
ItemModel XG6KXG6KSXG10KXG10KSXG15KXG15KSXG20KXG20KS
Capacity VA / Watts 6KVA / 4.8KW 6KVA / 4.8KW 10KVA / 8KW 10KVA / 8KW 15KVA/12KW15KVA/12KW20KVA/16KW20KVA/16KW
InputNormal Voltage 220VAC
Turn On Voltage Range(120±5~274±5)VAC
Frequency Range40~60Hz+-0.2(adjustable)
Input Power Factor>0.99(220VAC,full R load)
GeneratorSupport generator input(Generator rating≥2*UPS rating )
Line Low Loss/ComeBack220VAC:(120±5)VAC/(140±5)VAC when Load≤50%
220VAC:(150±5)VAC/(165±5)VAC when 50%< Load≤80%
220VAC:(160±5)VAC/(175±5)VAC when 80%< Load
OutputVoltage Range 200VAC/208VAC/220VAC/230VAC/240VAC, need to confirm before order(Could be adjusted by software,10% derating for 208VAC/200VAC)
Frequency Range 40~60Hz+-0.2(adjustable)
Wave FormPure Sine Wave
Transfer Time 0 ms, Between Line mode and Bat mode
Transfer time: 4ms (typical 2.5ms), line Mode and bypass mode
Voltage Distortion≤6%,Full RCD load
Voltage Distortion≤2%,Full R load
Overload Capacityload≤105%±5%, warning only, 105%+-5%<Load≤125% +-5% ,1min ; 125%±5%<load≤135%±5% , 30S ; Load>135%±5%, 100MS
Load Peak Ratio3:1(max)
BatteryBattery TypeMaintenance free valve regulated lead acid (VRLA) battery
Battery Voltage192VDC or 240VDC
Battery Capacity16*7A or 20*7AH, 9AH Option External16*7A or 20*7AH, 9AH Option External20*9AH, 7Ah optionExternal20*9AH, 7Ah optionExternal
Recharge Time7 hours to 90% capacityDepended on
battery capacity
7 hours to 90% capacityDepended on
battery capacity
7 hours to 90% capacityDepended on
battery capacity
7 hours to 90% capacityDepended on
battery capacity
Charge Current 1 or 2.5ANormal 5Amp. Max 7Amp1 or 2.5ANormal 5Amp. Max 7Amp1 or 2.5ANormal 5Amp. Max 7Amp1 or 2.5ANormal 5Amp. Max 7Amp
DisplayLED Display Line , Inverter , Bypass, battery
LCD Display LCD For input output HZ/VAC, Bat %/VDC, Load % and VA/Watts,Temp. Fault Code ,LED for line,bat, Inverter, Bypss,Fault
Audible AlarmBattery ModeBeeping every 4 min (re-settable)
OverloadBeeping every 1 min
FaultBeeping Continuously
Bettery Low/Charger FaultBeeping every 1 min
Bypass ModeBeeping every 2 min
L/N InverseBeeping every 2 min
CommunicationsRS-232/USB InterfaceRS232 or USB, With monitoring software
Working EnvironmentSurge ProtectionRJ-45 I/O port available for network or Fax/Modem
Working Temperature0ºC~40ºC
Humidity0-95% non-condensing
Product size WxDxH (mm)260*533*560190*425*328260*533*560260*533*501560*260*717533*260*501560*260*717533*260*501
Product Weight Kg 55/63(7AH)12.262/70(9AH)2183(9AH)3284(9AH)33
PCS/CTN 11111111
CTN size WxDxH (mm)360*640*760295*565*445360*640*760395*690*650705*430*960640*360*760705*430*960640*360*760
CTN Weight(G/W) Kg65/73(7AH)14.372/80(9AH)2492(9AH)3596(9AH)36
REMARKXG*K --- Standard Type Internal battery, XG*KS---- Long backup Type,External battery

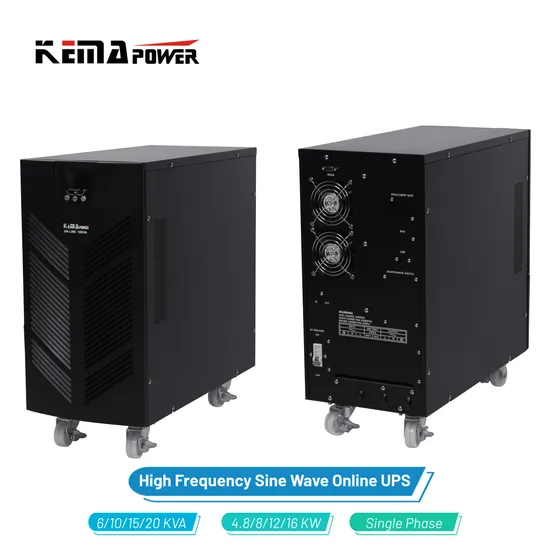

PRODUCT DISPLAY10KS/15KS/ 20KS - 260*533*501 mm
15K/ 20K - 560*260*717 mm Back side of 10K Back side of 10KS
