Convex Series Probe Type Wireless Mini Ultrasound Scanner

Product Description

Convex Series Probe Type Wireless Mini Ultrasound Scanner
Feature
·Advanced digital imaging technology, clear image
· High cost-effective
·Wireless connectivity, easy to operate
·Small and light,easy to carry
·Applicable in emergency, clinic, outdoor and vet inspection
·Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing

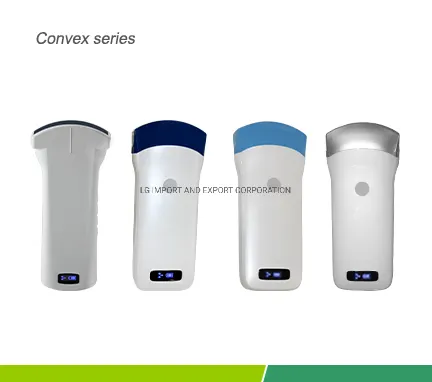

Color Doppler (White Head 192 Elements/Dark Blue 128 Elements).
High Configuration B/W (Light Blue 128 Elements).
Low Configuration B/W (Grey 80 Elements).
How it works
The Sonostar wireless probe is a mini ultrasound scanner without a screen. We minimize the components of a traditional ultrasound into a small circuit board built into the probe, and showing image in smart phone/tablet through Wifi transferring. image can both show in screen and tablet.Image transferring through internal wifi from probe, no need external Wifi signal.
Specifications
-Scanning mode: Electronic array
-Display mode: B, B/M, color doppler version with B+Color, B+PDI, B+PW
-Probe element: 80/128/192
-Channel of RF circuit board: 16/32/64
-Probe frequency and scan depth, scan angle, head radius: 3.5MHz/5MHz, 90/160/220/305mm, 60°, 60mm
-Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF
-Cineplay: auto and manual, frames can set as 100/200/500/1000
-Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement.
-Measure: Length, Area, Angle, heart rate, Obstetrics
-Image save: jpg, avi and DICOM format
-Image frame rate: 18 frames / second
-Battery working time: 3~5 hours(according to different probe and whether keep scan)
-Battery charge: by USB charge or wireless charge, take 2 hours
-Dimension: 156×60×20mm
-Weight: 220g~250g
-Wifi type: 802.11g/20MHz/5G/450Mbps
-Working system: Apple iOS and Android, Windows
Product Configuration
Standard Configuration:Wireless Ultrasound Scanner x 1 unit, USB Charging Cable x 1pc,Carrying Bag or Aluminium Suitcase(options) x 1pc.
Optional:Stainless Steel Puncture Guide, Android or iOS Phone/Tablet, Windows PC, Wireless Power Bank, Tablet Bracket, Trolley.
Product Configuration
Standard Configuration:Wireless Ultrasound Scanner x 1 unit, USB Charging Cable x 1pc,Carrying Bag or Aluminium Suitcase(options) x 1pc.
Optional:Stainless Steel Puncture Guide, Android or iOS Phone/Tablet, Windows PC, Wireless Power Bank, Tablet Bracket, Trolley.
Clinical value
Precision medicalvisualization tool, first aid quick examination, basic examination, wireless ultrasound probe is not only help the medical workers to improve working efficiency, reduce labor intensity and working pressure, but also improve diagnostic confidence and treatment.Minimize diagnostic and treatment errors, complications, sequelae, medical accidents and disputes
Application directions
1. Visualization tools: invasive intervention guide, surgical and therapy guidance.
2. Emergency inspection: ER, ICU, Wild First Aid, battlefieldrescue.
3. Preliminary examination: Ward Inspection, primary clinicexamination medical examination, health screening,home care, family planning, etc.
4. Remote diagnosis, consultation, training: works on smart phone or tablet, easy telecommunications.
Applicable Clinic
Anaesthesia, pain, ICU, urology, nephrology, cardiology, rehabilitation, orthopedics, gynaecology, reproductive, obstetrics, neonatology, pneumology, gastroenterology, hepatological surgery, general surgery, vascular surgery, thyroid surgery, skull surgery, neurology, transplantation, ophthalmology, dermatology, emergency, nursing, inpatient, physical examination, and ER ambulance, primary care, family planning centers, family medicine, home care, nursing home, prisons, plastic surgery, small needle knife/acupuncture treatment clinic, sports medicine, battle field ambulance, disaster ambulance, etc.
Example of usages
Puncture/intervention guide: thyroid ablation, neck vein puncture, subclavian vein puncture, and neck and arm nerves, canal of arantius, spine puncture, radial vein injection, percutaneous renal surgery guide, hemodialysis catheter/thrombosis monitoring, abortion, bile duct puncture, hydropsarticuli extraction, pain therapy and cosmetic surgery, urine catheterization. Emergency inspection:internal bleeding, Pleural effusion, pneumothorax, Atelectasis of lung, Temporal / posterior auricular fistula, pericardial effusion. Daily inspection:thyroid, breast, liver cirrhosis, fatty liver, prostate/pelvics, stroke screening, retinal artery, uterus, follicular monitoring, fetus, musculoskeletal, podiatry, fractures, varicose veins, spleen, bladder/urinary function, urine volume measurement.
