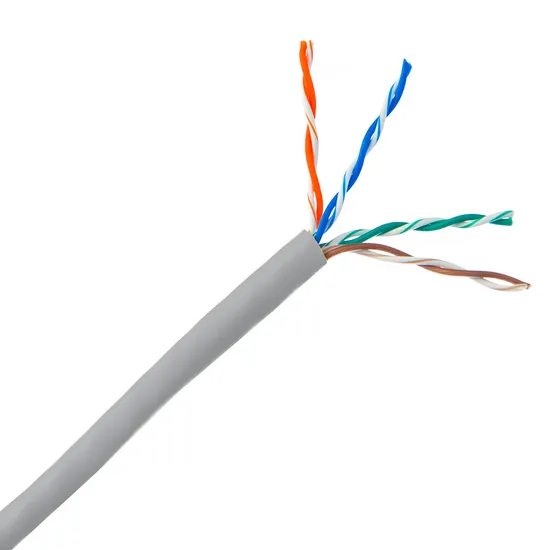

4pair Cu Copper CCA Cat 5 Network Cable 24AWG UTP Cat5e Cable 305 Meters 1000FT

Product Description

4Pair Cu Copper CCA Cat 5 Network Cable 24AWG UTP Cat5e Cable 305 Meters 1000FT
Cable Structure Specification

Item Name	UTP Cat5e Cable
TYPE	CAT5E Unshielded
Conductor	BC (Pure Copper)
	CCA(Copper Clad Aluminum)
Number of Conductor	4Pairs / 8 Cores
Specification	24AWG(4P*2*0.50MM) , As your request
Insulation Material	HDPE
Jacket	PVC/LSZH (Indoor)
	PE (Outdoor)
Color	Grey , Blue , Black etc, As your request
Operating Temperature	-20 °C - +75 °C
Packaging	305M/Roll (Indoor)
	305M/wooden drum (Outdoor)

Technial Performance

Frequency (MHz)	RL >=dB	ATT<=dB	NEXT >=dB	ACR (dB)	PSNEXT>=dB	ELFEXT>=dB	PSELFEXT>=dB	Delay(ns)
0.772	19.4	1.8	67	65	64	66	63	575
1	20.0	2.0	65.3	63.0	62.3	63.8	60.8	570.0
4	23.0	4.1	56.3	52.0	53.3	51.7	48.7	552.0
8	24.5	5.8	51.8	46.0	48.8	45.7	42.7	546.7
10	25.0	6.5	50.3	44.0	47.3	43.8	40.8	545.4
16	25.0	8.2	47.3	39.0	44.3	39.7	36.7	543.0
20	25.0	9.3	45.8	37.0	42.8	37.7	34.7	542.0
25	24.3	10.4	44.3	34.0	41.3	35.8	32.8	541.2
31.25	23.6	11.7	42.9	31.0	39.9	33.9	30.9	540.4
62.5	21.5	17.0	38.4	21.0	35.4	27.8	24.8	538.6
100	20.1	22.0	35.3	13.0	32.3	23.8	20.8	537.6

More Choice
Package
Factory show
Application
FAQ
1. Are you real manufacturer? Yes, our factory is located in Shenzhen, China, 2. Can you provide the samples? Yes, Samples free of charge, but freight necessary to bear yourself.
3. What is the delivery time?
It takes 3-5 days for the samples, 7-15 days for the bulk production. It depends on the order quantity. 4. Can you supply customized products and logo? (OEM/ODM) Yes, we can provide the OEM/ODM, please feel free to let us know your requirements. 5.Do you have warranty for your products? Yes,-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.

---
