High Efficiency Vibrating Table for Concrete Molds

Product Description

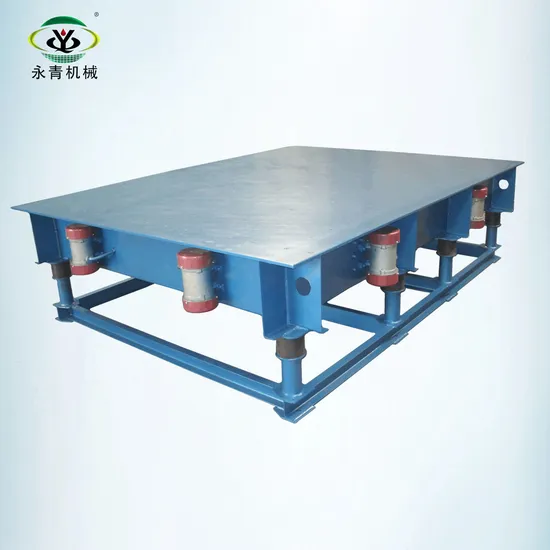

High efficiency vibrating table for concrete molds
I. Introduction
1. ZDP vibrating table is also called vibrating platform. Mainly used for material consolidation, air and cracks reduction within material, which makes processing materials more tighter, solider during cast consolidation. Such as lost foam casting, concrete casting and so on.
2. Widely used in metallurgy, casting, foodstuff, chemistry, construction fields and so on.
3. Used for transforming the granule, powders from bulk to block, from shape to form.
4. Different types of vibrating tables are available according to the production characteristics and requirements.
II. Parameters

ZDP Vibrating Table
Model	Table Size(mm)	Power(kw)	Amplitude (mm)	Max Loading Capacity(kg)
ZDP-500	500*500	2*0.25	2-5	300
ZDP-800	800*800	2*0.4	2-5	500
ZDP-1000	1000*1000	2*0.75	2-5	1000
ZDP-1200	1200*1200	2*3	2-5	1200
ZDP-1500	1500*1500	2*3	2-5	2000
ZDP-2000	2000*2000	4*1.1	2-5	2500
ZDP-3000	3000*3000	6*1.5	2-5	3000
Remarks: The customization is available.

III. Specifications
IV. Certificate
V. Clients Visit
VI. Related Products
If you are interested in our product, please kindly tell:
1. The table size(LXW) you need?
2. Max loading weight(including moulds)?
3. Local voltage(V) and frequency(Hz) in three phase?
Looking forward your inquiry.

---
