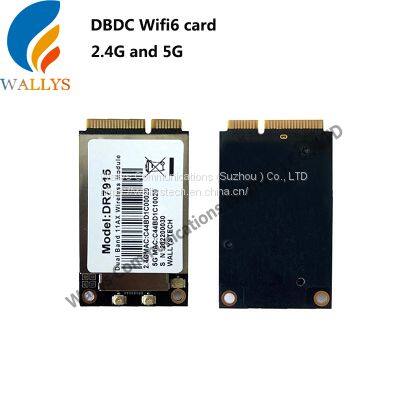

WALLYS//new card//MT7915 MT7975 WiFi6 MiniPCIe Module 2T2R 2×2.4GHz 2x5GHz
Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook.
SKYPE/EMAIL:sales@wallystech.com
APPLICATIONS
+ Profi WiFi hotspot coverage
+ Commercial radio coverage
+ Hotel Wireless application
+ Country coverage
+ Internet for passengers (bus, train, plane, …)
+ Security Surveillance
+ Some special scene application
+ Heavy-duty industrial environment use
MT7915+MT7975 Chipset
2.4GHz max 23dBm & 5GHz max 35dBm output power
IEEE 802.11ac / ax compliant & backward compatible with 802.11ax/ac/a/b/g/n
2×2 2.4G & 2×2 5G MIMO Technology, up to 1.8Gbps Mini PCI Express edge connector
SupporttheFrequency2412MHz~2482MHz
SupporttheFrequency5180MHz~5825MHz
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Supports Spatial Multiplexing,Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes,Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards
Supports Dynamic Frequency Selection (DFS)
CardsareindividuallycalibratedforQualityAssurance
Product Description
DR 7915 based on MT7915 + MT7975 Chipset is an enterprise wireless module integrated with 2x2 2.4G high power Radio module and 2x2 5G high power Radio module designed
specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment infactories, warehousese stablishment.
Symbol
| Parameter
|
Chipset
| MT7915+MT7975
|
Host Interface
| Mini PCI Express 2.1
|
Antenna Connector
| 2 x UF.L
|
Frequency Range
| 2.4GHz: 2.412GHz to 2.472GHz
5GHz: 5.180GHz to 5.825GHz
|
Operating Voltage
| 3.3V DC
|
Power Consumption
| TBD
|
Modulation Techniques
| OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM
|
Environmental Temperature
| Operating: -40°C to 70°C, Storage: -40°C to 90°C
|
Environmental Humidity, non-condensing
| Operating: 5% to 95%, Storage: Max. 90%
|
ROHS Compliance
| YES
|
Dimensions (W×H×D)
| 51mm × 30mm × 5.8mm
|
Operating Mode
| Data Rate
| TX Power
| Tolerance
|
1 Chain
| 2 Chains
|
2.4 GHz
802.11b
| 11Mbps
| 20dBm
| 23dBm
| ±2dB
|
2.4 GHz
802.11g
| 54Mbps
| 17dBm
| 20dBm
| ±2dB
|
2.4 GHz
802.11n HT20
| MCS7
| 17dBm
| 20dBm
| ±2dB
|
2.4 GHz
802.11n HT40
| MCS7
| 14dBm
| 17dBm
| ±2dB
|
Operating Mode
| Data Rate
| RX Sensitivity
| Tolerance
|
2.4 GHz
802.11b
| 11Mbps
| -96dBm
| ±2dB
|
2.4 GHz
802.11g
| 54Mbps
| -93dBm
| ±2dB
|
2.4 GHz
802.11n HT20
| MCS7
| -89dBm
| ±2dB
|
2.4 GHz
802.11n HT40
| MCS7
| -86dBm
| ±2dB
|
Operating Mode
|
Data Rate
| TXPower
|
Tolerance
|
| 1 Chain | 2 Chain |
5 GHz
802.11a
| 54Mbps | 17dBm | 20dBm | ±2dB |
5 GHz
802.11n/ac HT20
| MCS8 | 15dBm | 20dBm | ±2dB |
5 GHz
802.11n/ac HT40
| MCS9 | 14dBm | 17dBm | ±2dB |
5 GHz
802.11n/ac HT80
| MCS9 | 11.5dBm | 14.5dBm | ±2dB |
5 GHz
802.11n/ac HT20
| MCS9 | 17dBm | 20dBm | ±2dB |
5 GHz
802.11n/ac HT40
| MCS9 | 14dBm | 17dBm | ±2dB |
5 GHz
802.11n/ac HT80
| MCS11 | 11dBm | 14dBm | ±2dB |
