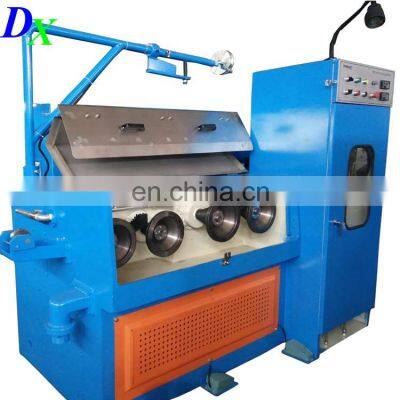

Automatic fine copper wire drawing machine
Product Description
Introduction of Automatic fine copper wire drawing machine :
Automatic fine copper wire drawing machine is notable for its wire, coil are soaked in lubrication liquid. This makes sure good lubrication condition and reduces friction force between the wire and equipment. It is ideal for drawing fine wires.
Advantage of Automatic fine copper wire drawing machine:
1.Double inverter can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.
2.Machine’s body and other key components and parts are produced by our own factory, quality is reliable
3.High tension durably flat belt gain convenient replacement and low noise in operating.
4.we only use elcctronic components of international well-known manufactures,such as:Japan NSK bearing,Switzerland SKF belt,
France Schneider electric and Shenzhen Inovance inverter ,some machine can equip with SIMENCE PLC
5.we have gotten ISO 9001:2008,CE and TUV certificate.
Body structure: enblock casting
Material: HT200 grey cast iron
Data of Automatic fine copper wire drawing machine:
Power control
| Dual Inverter Control
|
Max drawing dies
| 24
|
Inlet wire diameter
| Φ0.5mm—Φ1.0mm
|
Outlet wire diameter
| Φ0.08—Φ0.25 mm
|
Max drawing speed
| MAX2000m/min
|
Mechanical reduction
| 13%
|
Fix speed capstan slip ratio
| 8%
|
Body structure
| Steel plate welding and tempering
|
Drawing capstan
| Ceramic spraying
|
Main power
| 11KW
|
Take-up motor
| 4KW
|
Max diameter of Capstan
| Φ194mm
|
Fix speed capstan diameter
| Φ160mm
|
Annealing capstan diameter
| Φ160mm
|
Annealing voltage
| DC0~60V
|
Annealing current
| DC0~200A
|
Annealing protection way
| Steam
|
Take-up Bobbin size
| Φ300mm or depends on your request
|
Take-up way
| Center screw rod stringency
|
Traversing way
| 110W synchronous motor
|
Transmission way
| Belt
|
Spooler control
| PID displacement detection automatic control
|
Tension control way
| Weight balance way
|
Max loading weight
| 50KG
|
Lubrication of wire drawing
| Spray
|
Brake
| Magnetic brake
|
Voltage
| 380V 50HZ or customized by your request
|
Machine weight
| 2600KG
|
Finished product of Automatic fine copper wire drawing machine :
Packaging & Shipping
1.Nude, plastic film packing high speed copper wire drawing making machine with annealer.
2.As per customers requirement for fine wire drawing with continuous annealer for electric production
Our Services
Pre-Sales Service Inquiry and consulting support.
Sample testing support.
View our Factory.
After-Sales Service Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
If you want to know more information about our products welcome to contact us in any time.
And welcome to our company! We display more new design in our products.
Company Information
Gongyi DongXing company is professional in wire drawing machine.we have six years overseas marketing and commissioning experience.we know the most of suppliers in Chinese wire and cable machinery .we have lots of international friends ,wish you will be the next one .we produce wire drawing machine from 1.0-1.38mm to 0.08-0.65mm.such as intermediate wire drawing ,fine wire drawing machine ,metal bobbin and accessory etc.
FAQ
Q:could we appoint the parts brand?
A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.
Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge
Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge
Q: could you do the design for the whole plant ?
A: Yes , we can.
Q: what is the difference with other supplier?
A: what we could offer to other customer is not only the machine itself, also we could offer: factory design,
production process design , QC control and education and assist machine and raw material offering .
Q:How long the guarantee:?
A: one year and charge for repair the whole life.
