Product Details
Product Description
Product Description
Rated Output::| 11.0kW | SRated Speed::2000 RPM |
Power Supply Specification:| 200-230VAC 3-phase | Brand:Mitsubishi Industrial Servo Motor |
Model Item:| HC-SFS102K | Plan Of Original:Japan |
High Light:| ac servo motor,electric servo motor |

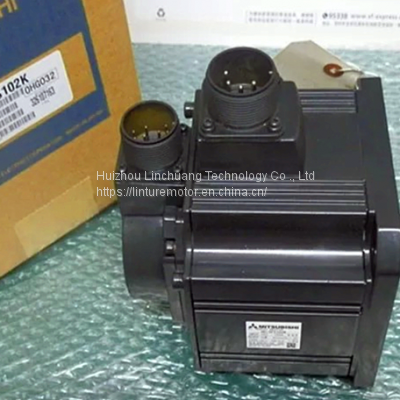

HC-SFS102K Mitsubishi Industrial Servo Motor Medium inertia power motor 2000r/min
MITSUBISHI HC-SFS102K Product information and technical parameters:
Brand: MITSUBISHI
Name: Medium inertia power motor
Model: HC-SFS102K
Motor series: medium inertia, medium power.
Rated output power: 1.0kw.
Rated speed: 2000r/min.
Whether to take the brake: No.
Shaft keyway: (open slot).
Protection level: IP65 (IP67).
Features: medium inertia from low speed to high speed three modes for selection, suitable for different applications.
Application examples: transmission machinery, robots, X-Y working platform.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.
Type: HF-KN servo motor, low inertia, low power.
Rated output power: 0.2kw.
Rated speed: 3000r/min.
Electromagnetic brake: there.
Oil seal: have.
Encoder resolution: 131072p/r.
S100 representative: Super MR-E special motor.
KH003 special mark for Super MR-E.
High performance and easy to operate, reduce work load MITSUBISHI HC-SFS102K.
Enhanced system cost performance.
High performance, high precision positioning (servo motor encoder resolution: 131072) HC-SFS102K
High response.
Suppression of vibration by adaptive vibration suppression control.
Using personal computer and servo setup software to optimize tuning.
Has 2 types of interfaces:
Position control and speed control with pulse train interface.
The analog input interface is used for speed control and torque control MITSUBISHI HC-SFS102K.
Wide use.
Machining equipment and machine tool feed.
Used for food, packaging equipment and feeding device.
For textile machinery, etc..
Can improve the performance of equipment.
Servo amplifier terminals are used to reduce the required wiring time.
The connector is located in front of the servo amplifier, which is convenient for cable connection MITSUBISHI HC-SFS102K.
The gain adjustment can be easily carried out by the real-time automatic tuning function. Type: HA-SE series.
Rated output: 0.5KW.
Rated speed: 2000r/min.
Electromagnetic brake: No.
Control complex, easy to achieve intelligent,
The electronic commutation method is flexible and can be changed by square wave or sine wave.
Motor maintenance free, high efficiency, low operating temperature,
Electromagnetic radiation is very small, long life, can be used in a variety of environments.
AC servo motor is brushless motor, which is divided into synchronous and asynchronous motor,
Synchronous machines are commonly used in motion control,
Its power range, you can do a lot of power.
Large inertia, the maximum rotation speed is low, and with the increase of power and rapid reduction.
So it is suitable for the application of low speed and stable operation.
The rotor of the servo motor is permanent magnet,
Drive controlled U/V/W three phase electric electromagnetic field,
The rotor rotates under the action of the magnetic field,
At the same time the motor comes with the encoder feedback signal to the drive,
According to the feedback value and thhe target value, the driver is compared,
Adjust the rotor rotation angle HC-SFS102K HC-SFS102K.
The accuracy of the servo motor is determined by the accuracy of the encoder.
| Servo System Controller | Servo Amplifiers & Motors |
| Motion CPU, independent stand-alone controllers, | Servo amplifier/drives, used in high-precision |
| positioning module products | positioning servo motor control system |
| MELSEC iQ-R series | Servo system controller | MR-J3 series | Servo amplifiers |
| MELSEC-Q series | Multi-CPU precision control | HF-KP series | Servo Motor 200V |
| MELSEC-L series | Motion positioning module | HF-SP series | Servo Motor 400V |
| Electromagnetic clutches and brakes | Tension Controller |
| Supports high-speed, high winding/unfolding | High-speed, high winding process and expand |
| tension, longer material control operations. | operations tension control |
| ZK, ZHA series | Magnetic clutch | LE, LD series | Automatic tension control unit |
| ZKG, ZHY series | Magnetic brake | LM-10,LX-TD series | Tension detector |
| Human Machine Interface (HMI) -GOT | Low-voltage circuit breaker contactor |
| Good compatibility with machine, high performance | MS-N series | Motor starters |
| GOT, productivity and efficiency. | SD-N, S-N series | Electromagnetic contactor |
| GT,GS seriess | GOT HMI | NF,BH-D6,CP series | Low-voltage circuit breaker |
>>
