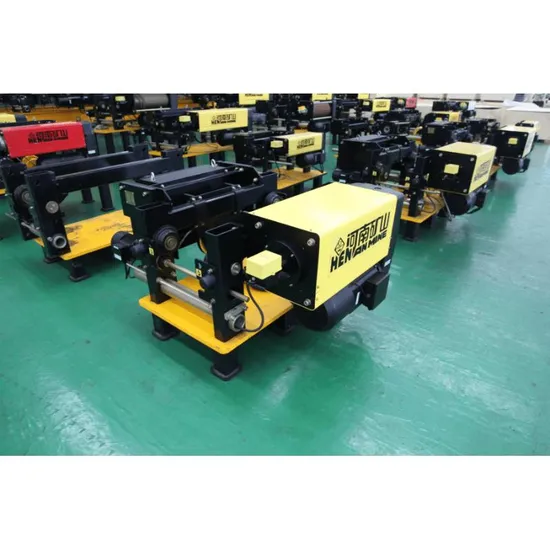

Henan Mine Remote Control Electric European Hoist 5t~10t

Product Description

Product Descriptions
Design, production and inspection carry out the last issued relevant national standard, equivalently adopts some foreign criteria including FEM, DIN and lEC. Compared with the general QD bridge crane, its weight is reduced by about 15 ~ 30%, the maximum wheel pressure is reduced by about 10 ~ 35%, which can the requirements of crane for factory building structure and reduce production cost, As the core componentof driving mechanism, reducer gear pair with hard tooth surface and high accuracy, together with steel reelforged wheel and variable-frequency speed regulating system, which makes this type of crane becomerenewal product of traditional general bridge crane .

Technical specification:

S.W.L (T)	Work duty	Lifting height (m)	Lifting speed (m/min)	Rope reeving	Travelling speed (m/min)	B (mm)	K1 (mm)	K2 (mm)	L (mm)	H (mm)	Wheel load (KN)	Weight (kg)
1.6	M6	6	1.6/10	2/1	2~20	200~300	500	450	930	400	6.1	300
		9					500	450	1100	400	6.2	335
		12					500	450	1270	400	6.3	370
2.5	M6	6	0.8/5.0	4/1	2~20	200~350	500	450	1180	430	9.1	315
		9					500	450	1400	430	9.2	350
		12					500	450	1620	430	9.3	385
3.2	M5	6	0.8/5.0	4/1	2~20	250~350	500	450	1180	450	11.5	335
		9					500	450	1400	450	11.6	370
		12					500	450	1620	450	11.7	405
6.3	M5	6	0.8/5.0	4/1	2~20	300~450	490	450	1170	500	22	400
		9					490	450	1400	500	22.1	450
		12					490	450	1630	500	22.2	500
8	M6	6	0.8/5.0	4/1	2~20	300~450	550	540	1120	650	28	580
		9					550	540	1290	650	28.1	610
		12					550	540	1460	650	28.2	640
10	M5	6	0.8/5.0	4/1	2~20	300~450	550	540	1120	650	34.7	580
		9					550	540	1290	650	34.8	610
		12					550	540	1460	650	34.9	640
10	M6	6	0.66/4.0	4/1	2~20	300~450	560	550	1140	700	34.7	650
		9					560	550	1320	700	34.8	690
		12					560	550	1500	700	34.9	730
12.5	M5	6	0.66/4.0	4/1	2~20	300~500	560	550	1140	700	43.3	660
		9					560	550	1320	700	43.4	700
		12					560	550	1500	700	43.5	740

---
