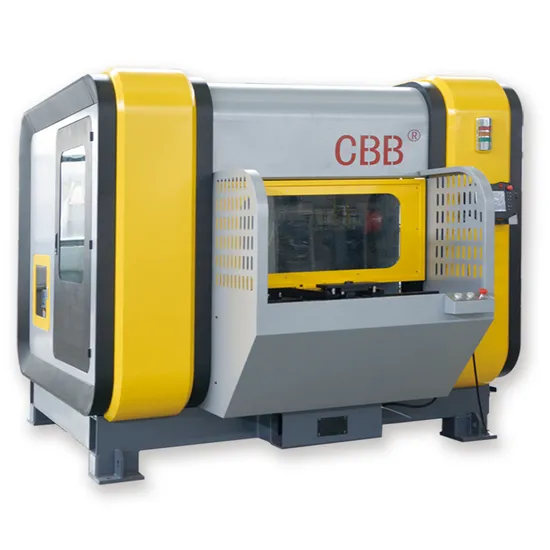

CNC Grinding Machine for Iron Casting

Product Description

Product Description
Equipment use range
1.Deburring and grinding of cast iron parts, such as automobile cylinder head, flywheel cover, clutch housing, chain cover, etc.
2.Deburring and grinding of cast aluminum parts, such as motorcycle wheel hubs, automobile hubs, etc.
3.All kinds of hardware and jewelry polishing.
Equipment Features
1. This equipment is a mechanical arm type CNC grinding workstation with multiple degrees of freedom, which is flexible and efficient;
2. The workbench adopts an exchangeable rotary workbench and a quick-change tooling design. The workpiece can be loaded and unloaded at the clamping position while the workpiece is being processed, which is safer and more reliable, and can greatly improve production efficiency.
3. The grinding spindle is equipped with a large diamond grinding wheel spindle and a small grinding spindle, which can be automatically switched according to the processing technology. The large diamond grinding wheel spindle is suitable for rapid grinding of large contours, and the small grinding spindle is suitable for grinding small inner holes and inner arc corners, which can meet the grinding needs of different parts.
4. The control system adopts today's advanced numerical control system with stable performance and high control precision.
5. The machine base, column, and mechanical arm have strong structural rigidity, and the machine tool has good stability.
6. Fully enclosed protection design, the outside can be connected to the dust removal pipeline, which can reduce the damage to the human body caused by dust and noise. The clamping station is equipped with a light curtain, which makes the operation safer and more reliable.
Equipment technical parameters

NO.	Item	Parameters	Remark
1	Power	18KW
2	Max.workpiece size	Diameter 500mm, height 300mm
3	Max.workpiece weight	30KG
4	Machine size	2250*3100*2300mm
5	Machine weight	About 3000kg
6	Diamond wheel size	12×φ355mm
7	Main grinding motor	7.5KW
8	Small grinding motor	3.5KW
9	Rotation angle	129°
10	Station	Rotary exchange station

Operation process
Manually place the workpiece at the clamping station of the rotary exchange workbench, press the start button button, and the U-axis will automatically rotate 180 degrees to the loading and unloading station of the mechanical arm. The mechanical arm will remove the workpiece and follow the preset program to grab the workpiece onto the grinding wheel to complete the polishing of each position. After the polishing is completed, the mechanical arm will then place the workpiece in the clamping position of the mechanical arm of the rotary workbench, and then rotate the workbench again 180 degrees to manually remove the polished finished parts, Add the blank again and cycle like this.
Detailed Photos
Company Profile
Delin Intelligent Technology Co., Ltd
1.We are one manufacturer of metal foundry machinery and CNC machining machinery in China.
2.We are production automatic molding machine, gravity pressure casting machine, compound CNC polishing machine , SPM machine
(compound CNC drilling machine,CNC machining center etc.), furnace, core shooting machine, mixing sand machine and so on.
3.Our machines are extensively used in producing and machining foundry parts,metal castings,
plumbing fittings, sanitary ware,car spare parts,valve for brass, aluminium, zinc, iron cast production line and others please contact us!
4.We have professional technical support and after sale service. With a whole line foundry machines,good quality, reasonable prices and stylish
designs.
FAQ
Q1. Where is your factory located ? How can I visit it ?A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.Q2. Are you produce machine's specific parameters according to the samples?A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.Q3. What is your sample service?A: We can supply the sample testing which client want to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.Q4. What is your MOQ of your machine?A: Normally our MOQ is 1 set.Q5. Do you test all your machine before delivery?A: Yes, we have 100% test before delivery.Q6: How do you make our business long-term and good relationship?A:1. We keep good quality and competitive price to ensure our customers benefit ;2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

---
