Plastic PP PE PPR HDPE Polyethylene Water Supply Drainage Gas Pipe Machine

Product Description

Plastic PP PE PPR HDPE Polyethylene Water Supply Drainage Sewage Gas pipe Tube Extrusion Making Machine
Product specification
Product application: water supply/drainage pipe
Advised raw material:PE 80, PE 100
Product color:as per customer's
Operation norm:CE,ISO9001:2000
Using condition
Power supply: 3P 380V (-10%,+5%) 50Hz
Installed power:about 150 kw
Cooling water: ≤20ºC ≥0.3Mpa~ 6L/min
Compressed air:0.3m³/min>0.5Mpa
Total length:about 38m
Machine Specification :

Type	Pipe spec	Extruder	capacity	total power
WR-PE63	φ 20-63	SJ65/33	100-120	55
WR-PE160	φ 63-160	SJ65/33	120-300	90
WR-PE250	φ 75-250	SJ75/33	280-400	110
WR-PE450	φ 160-450	SJ90/33	500-700	160
WR-PE630	φ 315-630	SJ120/33	700-900	280
WR-PE800	φ 450- 800	SJ150/33	1000-1100	315
WR-PE1200	φ 710- 1200	SJ150/33	1100-1300	355

1.High Effeciency Single Screw Extruder
Gear box bearings: NSK, Japan ,with Special design screw & barrel ,with Siemens PLC controlling system ,
ABB550 inverter,Siemens Beide motor, Low voltage component: Siemens

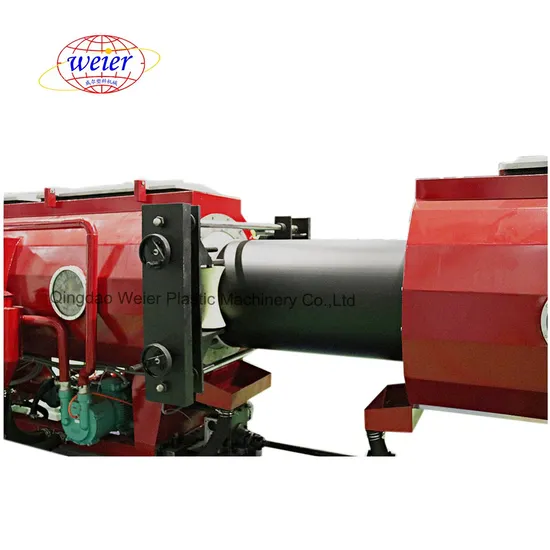

2. Vacumm Calibrating and Cooling Tank
High precision calibrating sleeves made from specify material with high outstanding thermal conductivity, high
Wear resistance and good sliding properties.Automatically control water temperature and water level



3.Haul-off Machine
Based on different diameter of the pipe, the hauling can be 2 caterpillars hauling machine,3 caterpillars hauling and
4 caterpillars machine,it's controlled pneumatically

4.Winding Machine & Cutter
Pipe diameter ≤110mm can be coiled by winding machine .
Cutting method: Hydraulic or mechanical knife cutting,
Cutting saw: steel alloy or SKD-11
Cast Alunimum clamping for accurate cutting
With Dust collection system

5.Die mould &calibrator

6. Finished products

Our service
Pre-sale
We provide presales service in various forms, for example, making investment budget, manufacturing
Planning, etc. so that customers make a reasonable plan with less cost.
Investment budgeting---We provide services of product profit analysis, recommendation of machine and
Auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
Plant Planning---We provide the mounting dimension of the equipment base, design of equipment layout,
Workshop ventilation, water transmission etc.
On-sale
Detailed design of workshop lay-out
Technological information of provided products
Schedule about design, manufacture and installation
Working & Producing process
Training courses for the technician team so that the installation is safe and standard
After-sale
For customers buying our products, we provide them training so that they can use and maintain the machine
independently.
We will offer to customers technical support in time. If needed, we will offer on-line guidance and assistance.
We can provide free technical guidance if customers need new equipment, add or rebuild equipment.
We will prioritize the product upgrading of previous customers.
