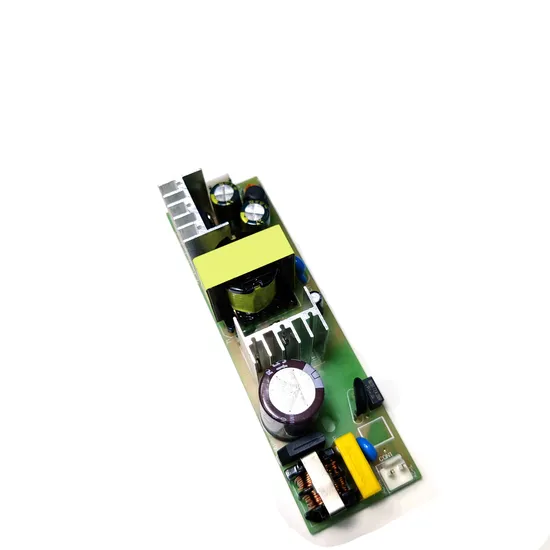

Customizable PCB Board AC 100-240V to DC 3.3V 5V 6V 9V 12V 13.8V 24V 36V 48V 1A 2A 3A 24V2.5A Switching Power Supply 60W Manufacturers Open Frame Power Supply
| MODEL | GF60-1B-DE |
| OUTPUT | DC VOLTAGE | 24V |
| OUTPUT POWER | 60W |
| CURRENT RANGE | 0-2.5A |
| RIPPLE & NOISE(max.) | 120mVp-p |
| VOLTAGE ADJ. RANGE | ±10% |
| LINE REGULATION | ±1.0% |
| LOAD REGULATION | ±2.0% |
| VOLTAGE TOLERANCE | ±2.0% |
| CONNECTION TERMINAL | DC+; DC- |
| INPUT | VOLTAGE RANGE | 110 ~ 264VAC |
| AC CURRENT(Typ.) | 0.35A/ 226VAC 0.18A/ 240VAC |
| CONNECTION TERMINAL | AC-L, AC-N |
| PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hicuup shut down,auto recovery |
| OVER VOLTAGE | Rated output voltage of 105%~150% start overvoltage protecion |
| Protection: burst mode,load of abnormal conditions removed the automatic recovery |
| SHORT CIRCUIT | voltage off and reset input for recovers |
| ENVIRONMENT | WORKING TEMP. | -0°C ~ +45°C (Refer to output load derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP.,HUMIDITY | -20°C ~ +85°C 10~95% RH |
| TEMP. COEFFICIENT | ±0.05%/°C |
| COOLING METHOD | BY FREE AIR CONVECTION |
| SAFTY | SAFTY STANDARDS | CE EN60950-1 Approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.0KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC |
| EMI CONDUCTION | Compliance to EN55022 |
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 |
| EMS IMMUNITY | Compliance to EN55024 |
| OTHERS | DIMENSION | L145*W46*H40MM |
| WEIGHT | 0.17Kg,100PCS/Carton |
| HEAT SINK | Silver aluminium: 25*30*28MM |
