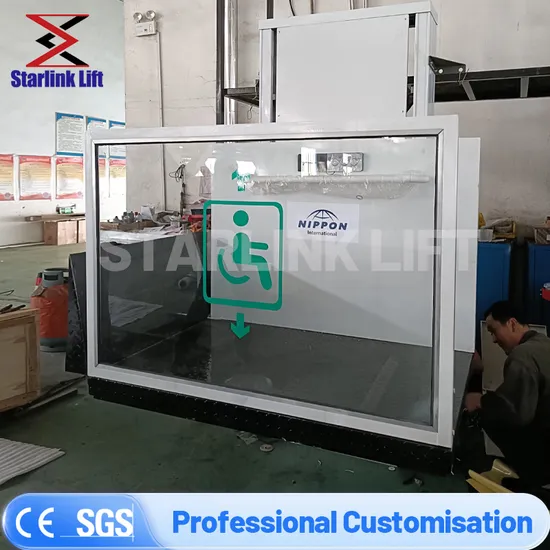

High Quality Disabled Wheelchair Lifting Platform Hydraulic Vertical Wheelchair Lift

Product Description

Product Description
Wheelchair platform liftare elevators that can be entered and used by wheelchair users, visually impaired people or stretchers. When elevators are installed in public buildings, they must be barrier-free. There are many international standards for barrier-free design. For elevators, the specific requirement is that the clear width of the entrance should be above 0.8 meters to facilitate wheelchair entry.

Product Description
Model Type	SLWZI	SLWZI	SLWZI	SLWZI	SLWZI	SLWZI	SLWZI	SLWZI	SLWZI
	2510	2515	2520	2525	2530	2535	2540	2550	2560
Max. Platform Height	1000	1500	2000	2500	3000	3500	4000	5000	6000
(mm)
Load Capacity	250	250	250	250	250	250	250	250	250
(kg)
N.W/G.W	350/450	450/550	550/700	700/850	780/900	850/1000	880/1050	1000/1200	1100/1300
(kg)
Machine Size(m)	2*1.430*1.3	2.5*1.43*1.3	3*1.43*1	3.5*1.43*1	4*1.43*1	4.6*1.43*1	5.1*1.43*1	6.1*1.43*1	7.1*1.43*1
Packing Size	2.2*1.6*1.6	2.6*1.6*1.6	2.8*1.6*1.6	3.1*1.6*1.6	3.3*1.6*1.6	3.6*1.6*1.6	3.8*1.6*1.6	4.3*1.6*1.6	4.8*1.6*1.6
(m)

Detailed Photos
Hydraulic Anti-fall
full-stroke anti-fall system, multiple protections for greater peace of mind
Automatic Flipping
the platform automatically flips up when it rises, which plays a protective role

Countertop
Extended extension table, extra large work surface, increased safety factor
Seamless Connection
The ramps are seamlessly connected to avoid excessive gaps and reduce lags



Intelligent Control
Inching button controls the rise and fall, and there is an emergency stop button to prevent emergencies

Installation Example
Company Profile
Shandong Starlink Heavy Industry Machinery Co., Ltd. is located in Jinan City, Shandong Province, China, is a professional production and development of various lifting platform enterprises, the main products are Hydraulic Scissors lift, Trailer boom lift, Home Lift and so on. Over the years, our company to "quality first, customer first, integrity-based" as the business philosophy, has become one of the leading domestic hydraulic equipment manufacturers.
All products produced by our company are in line with national and industry standards, and has passed ISO9001-2000 quality system certification, product quality and performance are recognized, products not only sell well in China, but also exported to more than 50 countries in the world, mainly distributed in Europe, the United States, the Middle East, Southeast Asia and South Africa. All products an be designed and manufactured according to your requirements, welcome to sample customized.
