Automatic ATM Paper, Thermal Paper Coating & Making Machine

Product Description

ATM paper,pos paper
Thermal Paper Coating Production Machine
Paper coating machine
Paper making machine

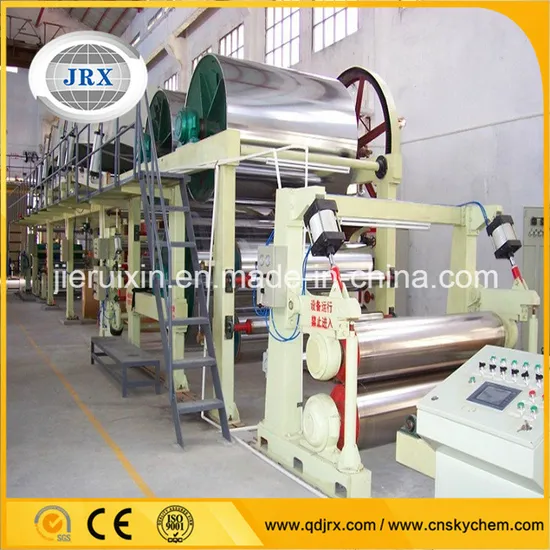

Thermal paper coating machine:
Mainly include single station release paper unit, blade coating, pneumatic open type hot air drying system, back coating wet Mizube, dryer coherent states finishing department, two roll calender machines, single station automatic correction reel, drive unit and electrical control nine parts. Drives with frequency step motor drive. The machine has a simple structure, easy operation and maintenance, loss of paper rate, etc.
Process:
unwinding roll - scrape-knife coating device - three drying ovens (four meters each drying oven) -scrape-knife coating device - four drying ovens (four meters each drying oven) -back wet device -3-1350 debugging mode Cylinder dryer-two roll calender machines -level rewinding roll device, please see process flow diagram
Technical parameters

Net paper width	1880mm	1880mm	1880mm
Design speed	130 m/min	180 m/min	230 m/min
Working speed	80-100 m/min	130-150 m/min	180-200 m/min
Raw paper weight	40-80 g/m^2	40-80 g/m^2	40-80 g/m^2
Coating weight	8-15 g/m^2	8-15 g/m^2	8-15 g/m^2
Production capacity	10-13 ton/day	17-20 ton/day	23-26 ton/day
Coating way	blade coater	blade coater	blade coater
Number of blade coater	2	2	2
Drying way	double - sided blow drying box	double - sided blow drying box	double - sided blow drying box
Number of drying box	5	5	5
Size of drying box	2400*3500 / mm	2400*3500 / mm	2400*3500 / mm
Working temperature	120-140ºC	120-140ºC	120-140ºC
Working pressure	0.5 MPa	0.5 MPa	0.5 MPa
Number of status adjustment cylinder	4	4	4
Size of status adjustment cylinder	1500*2300 / mm	1500*2300 / mm	1500*2300 / mm
Drive type	VVVF ; separately transmission	VVVF ; separately transmission	VVVF ; separately transmission
Control type	electric cabinet & pneumatic valve	electric cabinet & pneumatic valve	electric cabinet & pneumatic valve
Machine layout	singlelayer / double layer	singlelayer / double layer	singlelayer / double layer

Features:
PLC control, simple operation, less noisy.
High working speed, and the speed can be customized design
High quality air knife, long using life
Equiped with thermocouple electronic display to show oven temperature
Description
Paper-unwinding stand using hydraulic twin-roll paper-unwinding stand , equip with automatic splicer , replacement raw paper roll no need stop machine , provides efficiency and reduce paper damage probability.
Drying system using double - sided blow drying box . paper uniformity be heated . avoid since uneven heating paper deformation , effect of paper quality .
Calender machine : after coating , paper get in calender machine , maximum extent improve paper gloss and smoothness . paper gloss average 65-85% , after calender machine , can improve to 90-95%.
Paper reeling machine using horizontal paper reeling machine , high speed , high quality roll paper .
Drive system using electric motor drive , speed control by frequency variation , speed accuracy , high stability.
Electrical control using electric cabinet and pneumatic valve , easy to operation and use .
OVERSEAS PROJECT:
Working Process Overview:
Our Sales Service:
Engineer is available for exporting machine installing and testing running, and supply the technical support for customer worker training Some Easy damageable spare part within the guarantee is free for customer, but the delivery fees is on customers account.

Our serve:Your satisfaction is our service purpose
1	Reasonable suggestions for selection of equipment
2	Professional product's design to meet your equipment needs.
3	Provide detailed configuration of the equipment instruction and equipment assembly drawings, to make you more aware of the device's ability to work.
4	Transportation Service.
5	Engineers on-site equipment installation and commissioning
6	Provide training for your employees
7	Professional technical guidance and technical support during your production, make sure the device's function properly
8	Equipment upgrade & remould
9	Engineer can go to your factory when you need
10	Guidance of maintenance for equipments

Any intersted, you are welcome to contact us.

---
