No Extra Waxing Cleanroom Carbon-Fibers-Free Anti Static ESD Vinyl Flooring (YHE2112-2)

Product Description

Product Description
Carbon-fibers-free electrostatic discharge(ESD) flooring uses oxidized metal materials instead of traditional carbon black to achieve conductivity and dissipation.
Designed for reliable ESD control, with a consistent and safe discharge rate (10^5 to 10^8 ohms).
Use oxidized metal instead of carbon for conductivity and dissipation. Free from carbon fiber, completely homogeneous, overall anti-static not partially anti-static, reducing the risk of environmental contamination.
Meanwhile, the properties of oxidized metal protect against microbial growth, its anti-bacterial, antiviral, and antifungal.
Automatic Wax Release Technology requires no waxing for at least 5-8 years, reducing maintenance costs and effort.
YH Floors's Carbon-Fibers ESD Flooring could be used in Clean rooms, Aerospace, Defense R&D, Wind Tunnels, Optics, Robots, Pharmaceutical Factories, Intelligent Upgrades of Traditional Manufacturers, and anywhere flammable & combustible or static-sensitive components.

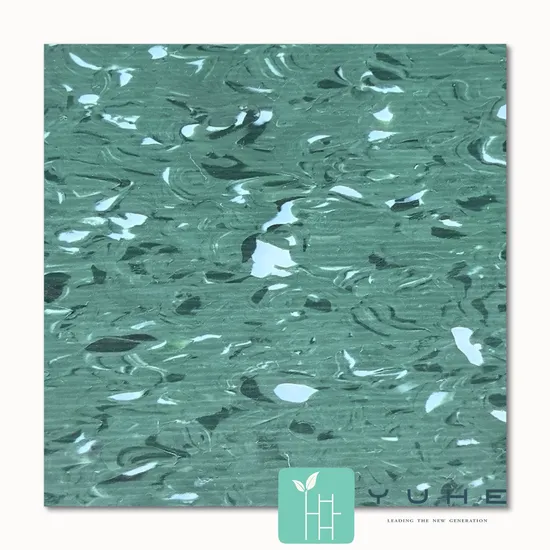

Detailed PhotosDifferent color options
More choices
Different design
Size

Item	Data
Dimensions	1560mmx15m
	2000mmx15m
Thickness	2.0mm
	2.5mm
	3.0mm
Weight	3100g/m2(2mm)
	3870g/m2(2.5mm
	4650g/m2(3mm)

Features
* Homogeneous
* No dead or hot spots
* Absence of carbon sloughing
* Overall anti-static no partial anti-static
* No risk of carbon dust particulate contamination
* No carbon chips on the top, clean and good visual
* Anti-bacterial,anti-viral,anti-fungal
* T class wear resistance
* Good flexibility, folding back and forth without breaking or creaking
* Longer service life
* Scratch-resistant, easy to keep clean
* Automatic wax release technology
* No extra wax for at least 5 years Product Parameters

Carbon fibers free ESD tiles test result
Item	Standard	DATA
Electrical Resistance(Ω)	GJB3007-2009	Conductive1.0×10E05-1.0×10E08ohms Dissipative1.0×10E06-1.0×10E09ohms
Starting Voltage	SJ/T10694-2006	<100V
Static Decry(s)	SJ/T10694-2006	<=1s
Wear Resistance(1000r)	SJ/T11236-2001	<0.020g/cm2
Fire Resistance	SJ/T11236-2001	FV-0

Our Advantages
Long-Term ESD Control:
The floor is uniformly anti-static, offering complete protection across the entire surface, with no hot or dead spots.
NON Particulate Contamination:
Use oxidized metal instead of carbon for conductivity and dissipation.
Free from carbon fiber, reducing the risk of environmental contamination and offering low emissions for a healthier workspace.
Excellent Antibacterial Properties:
The properties of oxidized metal protect against microbial growth. Its antibacterial, antiviral, and antifungal properties promote cleaner and healthier spaces, making it a more professional choice for the pharmaceutical and biological industries.
Improved Air Quality:
The flooring emits minimal volatile organic compounds (VOCs). It contributes to better indoor air quality and low TVOC emissions, making it a safer choice for indoor environments, especially in sensitive areas like healthcare or cleanrooms.
Exceptional Durability:
The oxidized metal integrated with PVC, is homogeneous, achieving T-class wear resistance, rating, and scratch resistance, the flooring will last for years, even under demanding conditions.
Easy to Install and Maintain:
The flexibility and ease of installation reduce downtime, and the low-maintenance design ensures a hassle-free experience for facility managers.
Cost-Effective:
Automatic Wax Release Technology requires no waxing for at least five years, reducing maintenance costs and effort.
With long-lasting wear resistance, no waxing needed for 5 years, and minimal maintenance, this flooring offers great value for money.

Square meter	Professional worker	WAX	Each time	Total
1000m2	$25~75	$1~3	$1000~3000	$34400~36800
5000m2	$25~75	$1~3	$5000~15000	$172000~184000

Final Cost RangeDepending on whether you use the lower ($1/m²) or higher ($3/m²) estimates for waxing and preparation, the annual cost can vary:
Low estimate: (1+1)$/m2×1,000m2×8=16,000$(1+1)$/m2×1,000m2×8=16,000$.High estimate:(3+3)$/m2×1,000m2×8=48,000$(3+3)$/m2×1,000m2×8=48,000$.Labor cost per job=(Hourly rate×Hours)×Number of workersLow estimate: (25×6)×2=300$High estimate: (75×6)×2=900$Total cost per job=Waxing/preparation cost+Labor costWaxing/preparation cost (from earlier): $4,000 per job.Low estimate (labor included): 4,000+300=4,300High estimate (labor included): 4,000+900=4,900
Ordinary anti-static floors need to be re-waxed every 45 days on average, about 8 times a year, which requires a lot of post-maintenance costs. To wax anti-static flooring for 1,000m2, the average cost is between $1 to $3 per square meter ($0.09 to $0.28 per square foot). Additional costs may include labor ($25 to $75 per hour per worker) and floor preparation (cleaning or patching), which can add $1 to $3 per square meter. Other factors that influence cost include the frequency of waxing (more frequent re-waxing can increase long-term costs) and the condition of the floor. Final Annual Cost Estimate:
Including labor, the total annual cost ranges from $34,400 to $39,200. For a mid-range estimate, could achieve around $36,800 per year.YH FLOORS' S Carbon-Fibers-Free ESD Vinyl Flooring could save you lots of money.
Installation Instructions
Site environment requirements before construction
1. Before the construction of PVC anti-static coiled materials, it must be ensured that the ceiling and walls above the construction site have been completed and that no debris falls from above to damage the floor or coiled materials.
2. Ensure that a grounding point is pre-buried every 300m2.
3. The construction site is equipped with lighting and a 220v power supply and has been powered on.
4. The site is well ventilated and the temperature is between 8ºC and 35ºC
Requirements for the on-site foundation (rough) floor
1. Visually observe that the floor has no sand, cracks, oil stains, and no hollows when knocked.
2. The ground is flat and the unevenness is ≤2mm/2m
3. The floor is dry and the moisture content is ≤4.5%
4. The cement mortar hardness of the floor is ≥1.5Mpa
5. The bottom foundation floor has a waterproof and moisture-proof layer.
Packaging & Shipping
Accessories

Description	Specification	Packing
Welding Rod	4mmØx100m	20rolls/ctn
Copper Foil	0.025 (T)x15mm (W)x500m	5000m/ctn
Conductive Adhesive	20kgs/barrel	20kgs/barrel

Certifications

---
