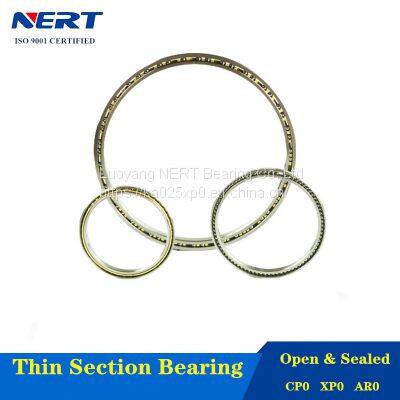

KD140XP0 KD Series 4-Point Contact Bearing Type-X Open Bearing Size 304.8x330.2x12.7mm
KD140XP0 Thin section four point contact ball bearing belongs to KD SERIES of thin section ball bearings, the KD SERIES include KDCP0, KDXP0 and KDAR0,which represented : Type-C : Deep Groove bearing, Type-X: Four Point Contact bearing and Type-A: Angular Contact bearing, the rolling body of these bearings is ball, which can be nylon ball or steel ball as requested.
The bore size of KD SERIES are ranged from 4 inches to 20 inches and the outer diameters are arranged from 5 inches to 21 inches, while the Cross Section is constant, that is 0.5 inch.
TECHNICAL PARAMETERS
Bearing Type : Ball
For Load Direction : Four Point
Construction : Single Row
Seal Type : Open
Cross Section : 1/2 inch x 1/2 inch (12.7 x 12.7mm)
Plant Part Number : NKD140XP0
For Shaft Diameter : 14 inch (355.6mm)
Bore Dia (d) : 14 inch (355.6mm)
Tolerance : -0.0006 inch – 0 inch
Outer Dia (D) : 15 inch (381mm)
Tolerance : -0.0005 inch – 0 inch
Width (B) : 0.50 inch (12.7 mm)
Tolerance : +.000 –.005 inch
Ring Material : 52100 Chrome steel
Ball Material : 52100 Chrome steel
Cage Material : Brass
KD140XP0 Thin Section Four Point Contact Bearing is also numbered as :
CSXD140 / RD140XP0 / KD140XP0 /
Our New Products
Thanks to our experienced designer and manufacturing engineer, we accept customized design, some samples are shown below,if you are interested in the customized design, please feel free to leave a message or contact us directly.
About Our Stock
For those items are available in the warehouse, we shall deliver them within 7 days upon receiving payment, and those are not available , we shall arrange to produce them however a minimum order is required, and the lead time shall be around 10-30 days.
Applications:
Our BOBI products are widely used in the following fields: Medical Equipment, Rotary polishing equipment, X-ray – MRI, Rotary pipe cutting equipment, Rotary welding equipment, Semi-conductor equipment, Rotary actuators, Rotary work holding tables, Aerospace - auxiliary equipment, Turrets, Gun turrets, Turntables, Indexing tables, Missile launchers, Machine tools, Lathe accessories, Radar equipment, Robotics, Radar drives, Antenna pedestals, Packaging equipment, Satellite antennas, Pedestals Labeling machines, Truck mounted communication equipment, Food processing equipment, Bottling equipment.
>>
