Kraft Paper Roll Sheeting Machine Silicon Coated Paper Jumbo Roll to Sheets Cutting Machine with Automatic Stack Function

Product Description

Specification:
1. Feeding part uses automatic pneumatic type air shaft loading system with 76mm for paper core.(Optional: hydraulic shaft-less
loading system with 76mm and 152mm for paper core)
2. Machine rock use 12mm thick steel plate with groove steel structure. Bottom of cutting knife use heavy casting structure, guide
rollers using static balanced aluminum alloy guide roller.
3. Traction drive fixed position uses servo motor, INVT 4.4KW, traction driver roller use steel structure. Feeding traction
way is through motor move the chain wheel to drag the rubber roller. The receiving platform is automatic stacking device,
control by motor.
4. Machine can be equipped with slitting device(for middle cutting or trimming), anti-bending device, and ultrasonic control
device for edge position correct system, color sensor device.
5. Our Machine is good for jumbo rolls cross cutting, it's with high precision within ±0.2mm. High speed and receiving sheet paper
flat and neatly.
Technical Parameter:

Model	BG-1100	BG-1400	BG-1600
Max raw rolls width	1100mm	1400mm	1600mm
Max raw rolls diameter	1400mm	1400mm	1400mm
Max cutting length	1200mm	1200mm	1200mm
Max speed	90m/min	90m/min	90m/min
Accuracy	≤0.2mm	≤0.2 mm	≤0.2mm
Machine weight	4600kg	5000kg	5400kg
Total power	8KW	10.5KW	12.5KW
Dimension	5.6*1.9*1.8m	5.6*2.2*1.8m	5.6*2.4*1.8m

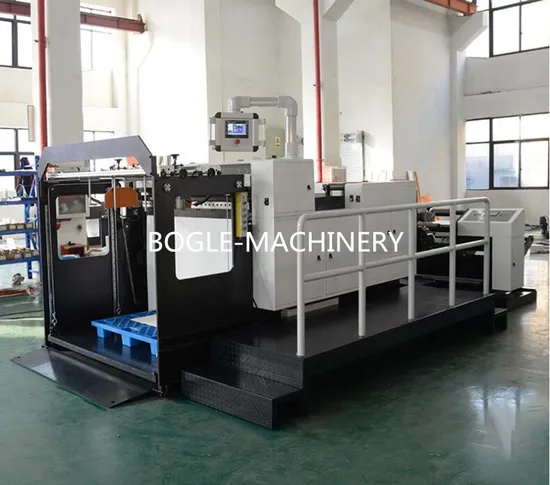

Machine Photos:
Our Factory:
Our Customer Feedback:
Certificate:
Package & Loading:
FAQ:
1.:Are you manufacturer or trading company ?
We are manufacture, specializing in plastic package machinery filed more than 15 years, we have own export sale team.
2. Where is your factory?
Our factory is located in Ruian,Zhejiang Province, China, about 1hour far away from Shanghai or Guangzhou, after you arrive Wenzhou Airport or Ruian Railway Station, we will drive and pick you up there, welcome to visit our factory.
3 What's the deliery time?
Generally, the delivery time is about 30-40 days, if you need machine urgently, we also could shorten the delivery time.
4.:What's the quality warranty period?
one year quality guarantee, within the period, freely provide replacement at the buyer delivery cost, life long after sale service and technical support,

5:What's the package method?
The machine will be cleaned and packed with stretch plastic film to avoid dust.

6.Does your factory provide installation and trainning service?
We could appoint engineer go to the buyer's factory to do installation and trainning at the buyer's cost.
7:What are your terms of payment?
We accept T/T and L/C.

---
