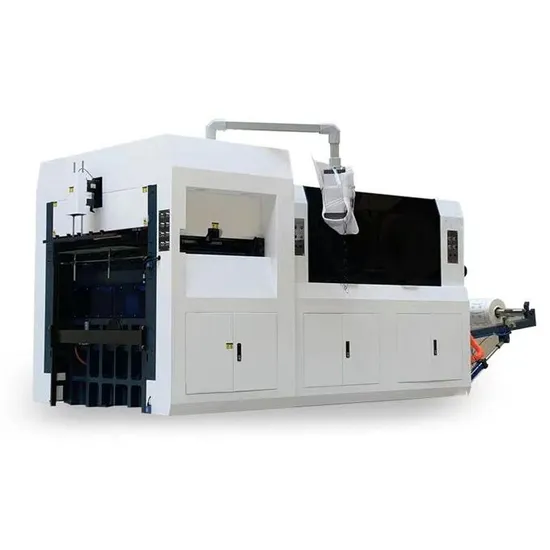

Hydraulic Automatic Roll to Paper Cup Fan Die Cutting Press Machine

Product Description

Specification

Model	ZM-GW970
Cutting Precision	0.1mm(white paper)
Rated Cutting Speed	180-200times/min
Max Cutting Speed	200times/min
Max Cutting Pressure	320T
Max Cutting Paper size(W*L)	940*550mm
Min Cutting Paper size(W*L)	400*350mm
Suitable Paper Weight	100g-500g
Total Rate of Machine	16Kw
Main Motor Power	7.5Kw
Overall Dimensions	4.6*2.8*2.3m(L*W*H)

Main Feature
1) German technology, machine core worm gear, worm structure, synchronization to send oil to machine parts could prolong the service life of equipment.
2) The professional typesetting technology sector paper to save up to 18%, save manpower cost, manufacturing cost, improve production efficiency.
3) Control the feeding, the realization of color code tracking, precision die-cutting.
4) According to the paper layout, use different shape knife version, pneumatic locking knife version, easy to change.
5) Paper random double row roller synchronous movement, help feed wind at the same time, improve the paper function.
6) Drum pressure half die cutting, creasing, tile tree fern, multi-usage.
7)Suitable for all kinds of white cards, kraft paper, creasing paper, corrugated paper, PVC, aluminum foil paper, paper cup fans, etc.
Structure Device List

No.	COMMODIT	DESCRIPTION
1	Handpiece5 Components, Casting Parts	Crossbeam,Lifting Table, The movement Base, Left and Right Wallboard
2	Inter-Machine Transmission Device	Worm Gear, Worm
3	Chopping Board	NO.65 Manganese Steel
4	Automatic Form Receiving Tray
5	Fixing Core Loading Paper

Electric Configuration List

No.	MOTOR MODEL	MANUFACTURERS
1	Main Motor Y132M-4	Lichao Shanghai
2	Servo Motor 4.5ACA61(with reduction gearbox)	Delta
3	Smart Sensor(Color Marks Sensor)	Sick Germany
4	Touch Screen DOP-BO7S200	Weinview
5	PLC:DVP	Delta
6	Traction MotorZF32-2.253	Zhibao Taiwan
7	Frequency Converter 7SKWVFD-B/2.2WVFD-M	Delta
8	Reduction Gearbox	Germany
9	Switch	Schneider,Delixi

---
