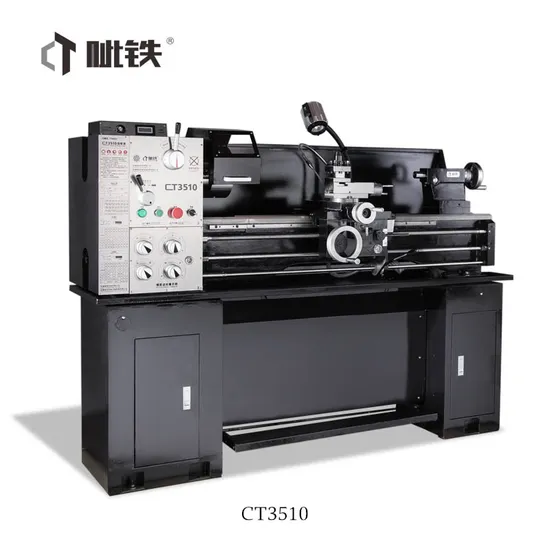

CT3510 Small Turning Lathe Machine for Metal with Factory Price

US$4,424.00
1-2 Sets
US$4,374.00
3-4 Sets
US$4,314.00
5+ Sets

Basic Info.

Model NO.
CT3510
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001, ISO9000 2020
Condition
New
Transport Package
Standard Wooden Packing
Specification
1900*700*1350mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Packaging & Delivery

Package Size
192.00cm * 75.00cm * 150.00cm
Package Gross Weight
570.000kg

Product Description

Max. swing over bed 355mm
Max. swing in gap 500mm
Max. swing over cross slide 220mm
Distance between centers 1000mm
Saddle length 204mm
Spindle taper MT5
Spindle bore 51mm
Spindle end D1-4
Max. travel of tail-stock sleeve 95mm
Taper of tail-stock MT3
Large carriage travel 160mm
Small carriage travel 68mm
Metric Thread/grade 0.4~7.0mm/26
Inch Thread/grade 4~56T.P.I/34
Spindle speed range/grade 70~2000r/min(Stepless speed regulation)
Width of bed 187mm
Net weight/Gross weight 510KG/570KG
Overall dimensions 1900x700x1350
Packing Size 1920x750x1500
