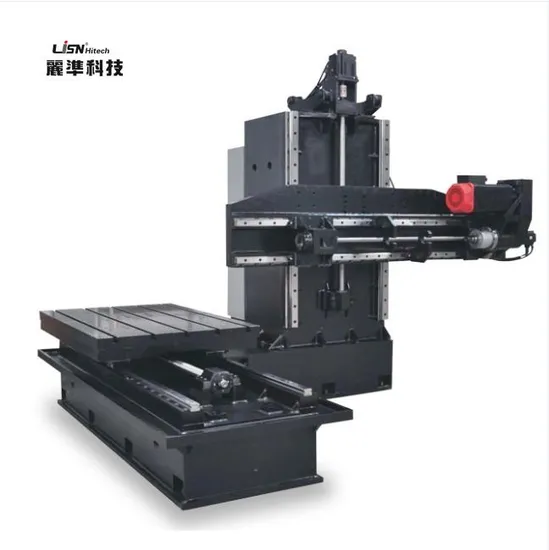

4 Axis Vertical Deep Hole Drilling and Milling Composite CNC Machine Thd-640

Product Description

Product Description
The precision CNC deep hole driling machine produced is suitable for various kinds of work pieces for deep hole processing:. die &. mould industry (water transport hole, center hole, hot runner, guideroller hole, etc.); auto industry (deep hole processing in cylinder head, crankshaft, hydraulic tubing,plunger bushing, etc.); oil pump &lubricating nipple industry (deep hole processing in oil-injection gas, nozzle valve, plunger bushing, and other spare parts) ; textile machinery industry(mesopore processing of various spindles); medical equipment industry (axial processing i titanium ally , stainless steel, etc.; mine &oil machinery (deep hole processing on piston rod, cylinder wall ; deep hole processing of rotor,central spindle, valve spindle, unit outer cylinder,condenser tube plate in the industry of electrical power, steam turbine. Detailed Photos
Product Parameters

Item	Specifications	THD-640	THD-850
Diameter of drilling	mm	1.0-16	1.0-25
Maximum drilling depth	mm	180	200
Worktable Size	mm	700*420	1000*500
Load Bearing Of Worktable	mm	300	600
Spindle Hole Taper	mm	BT40-120	BT40-150
Max Rotary Speed Of Spindle	mm	8000	8000
Precision Of Spindle Inner Hole	mm	±0.002	±0.002
Distance From Spindle Nose To worktable	mm	130-580	130-660
Three Spindle Speed Range	mm	36/36/24	36/36/24
Processing Movement Mode	mm	Servo/Hydraulic Pressure	Servo/Hydraulic Pressure
Spindle Motor Power	KW	7.5	7.5/11
X/Y/Z/W Axis Servo Motor Power	KW	2/2/3.9/1.5	2/3.9/4.9/1.5
Machine Dimension	mm	2500x2000x2600	2700x2400x2700
Machine Weight	KG	4200	5500

Company Profile
Taiwan Lizhun established a branch in Dongguan Changan, Guangdong Province in 2006. It is a high-tech CNC machining center manufacturer wihch integrating research and development, production, sales and service. The company specializes in the production of CNC machining centers and surrounding supporting machine tools and other equipment. Its' factory is located in Dongguan City, which is known as the "world factory" and also covering an area of more than 20,000 square meters. After in-depth exploration of market demand and unremitting research and innovation, it now has a group of highly efficient R & D, production and service team. The LiSN brand wihch belongs to Lizhun has been trusted by many famous brands based on its comprehensive technical support, professional testing equipments and testing methods, comprehensive organizational structure and industry-leading service philosophy. The industries of its products and services cover mould industry, new energy industry, 5G industry, furniture industry, machining industry, construction machinery industry, power equipment industry, aerospace industry, etc., and it has dedicated its wisdom and solutions to manufacturing in China and also the world. Lizhun wil be continuing to uphold "integrity and Innovation" spirit of the enterprise for the domestic and foreign customers to provide high quality machine tools and equipment and a full range of solutions.
After Sales Service
1,Installation and commissioning: The seller is responsible for installing and commissioning equipment free of charge at the buyer's site, and providing free training for operators and maintenance personnel.
2,Technical support: The seller provides effective technical support, which can optimize processing procedures and adjust machine parameters according to the characteristics of the products processed by the buyer. Provide support for the design and application of fixtures and fixtures used in the processing of products by the demander.
3,Warranty Period: After machine tool acceptance, the machine tool provides 12 months of free warranty, free service within the warranty period, and timely and effective service.
4.Service Time Commitment: Within 24 hours after the seller receives the machine tool failure report, the after-sales service personnel will deal with it.
5,Technical support after the expiration of the warranty: Within five years after the expiration of the warranty, the seller provides free soft technology consultation services, such as machine tool machinery or system failure, and the seller provides free soft technology consultation services.
6,Supply of spare parts after the expiration of the warranty period: After the expiration of the warranty period, the seller can provide the buyer with comprehensive and preferential vulnerable repair parts for a long time.
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
