Basic Info.
Model NO.
K3-XNJ08A-8 inch
Durability
Anti-Dust, Drop resistance, Shockproof, Waterproof
Certification
EMC, TELEC, IEC, CCC, FCC, ROHS, CE
Battery life
14 hours & above
Special Features
Media Card Reader, Stereo Speakers, Fast Charging
Battery Capacity
6000mAh-8000mAh
Built-in Bluetooth
Built-in Bluetooth
Built-in Microphone
Built-in Microphone
Fingerprint
Without Fingerprint
Display Resolution
2560*1440
Screen Type
Capacitive Screen
Display Screen
8inch IPS Screen, Resolution 1200*1920
Touch Screen
G+G Capacitive Screen
Camera
Front 5.0MP + Rear 8.0MP
CPU
Powered by Intel Celeron N5100
RAM
DDR4/4GB/ Optional 8GB/ Support 16GB Customization
ROM
SSD/128GB Optional 256GB
Audio
Built-in Waterproof Speaker *1
WiFi/Bluetooth
802.11A/B/G/N. Frequency 2.4G/5.0g
Gnss
Standard /GPS/ Optional Beidou /Glonass or Other C
Transport Package
282*257*79mm
Specification
282*257*79mm
Product Description
Product Description Product characteristics
| 1. High definition, high brightness, and smooth touch control |
| Industrial grade LCD screen, frame pasting process, 1920x1200 high-resolution picture color, gorgeous, high brightness. The touch screen is precise and sensitive, and the 7H hardness tempered glass is scratch resistant |
| 2. Stable operation and fast speed |
| Designed by a senior R&D team, using MediaTek 8788 processor and major brands for DDR, EMMC, and other important ICs. The entire machine is made of solid and high-quality materials |
| 3. The double-layer body is solid and stable |
| Accurately calculate the strength and characteristics of each material of the shell, forming a perfect combination of rubber, plastic, and metal. The dual color mold manufacturing process makes the body sturdy and reliable, easily achieving IP67 protection level and MIL-STD-810G standard |
| 4. Rich interfaces and complete modules |
| Equipped with 5 million+16 million cameras, WIFI, Bluetooth, 4G, GPS, high fidelity speakers, TF, Type-C, USB, HDMI, RJ45 and support for fingerprint, NFC, QR code scanning and other modules |
Product specificationstractor
K3-AMJ08A-MTK8788 8 inch
| Basic parameters | CPU | MediaTek 8788 processor/8 cores/8 threads/2.0GHz clock speed |
| Memory | Optional 4GB-8GB |
| Storage | Optional 64GB-256GB |
| Display | 8-inch LCD screen resolution 1920 × 1200, 560 nits |
| Touch screen | 10 point touch capacitive screen/hardness 7H/supports customization of various special touch screens or electromagnetic screens |
| Camera | Front 5.0MP+rear 16.0MP/autofocus/with LED lights |

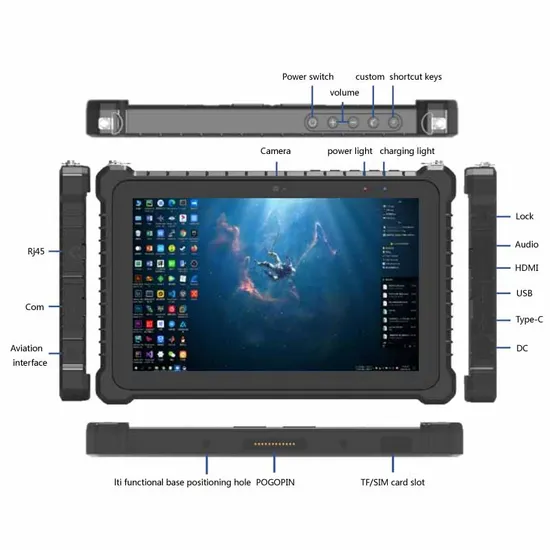

| I/O Interface | Audio *1 /Φ3.5mm Standard headphone jack |
| Mini HDMI*1 |
| USB *1 |
| Type-C *1 |
| DC_IN *1 |
| 12Pin Pogo Pin *1 |
| RJ45*1 /One hundred trillion |
| TF/SIM 2-in-1 card slot * 1/TF card supports up to 256GB expansion |
| Modular | WiFi/Bluetooth | Dualband(2.4/5GHz) singlestreamI802.11a/b/g/n/acMAC/BB/RFSOC20/40/80MHz bandwidth,MCSo~9(256-QAM802.11d/e/h/i/j/k/r/vcomplian |
| GNSS | GPS/built-in |
| 4G | FDD :B1 B2 B3 B4 B5 B7B8 B12 B17 B20 B28AB B66 | TDD:B38 B39 GSM: B2 B3 | B40 B41 B5 B8 |
| TDSCDMA: B34 B39 CDMA:BC0 WCDMA:B1 B2 B5 B8 |
| QR code module | Support/Optional Configuration |
| fingerprint | Standard fingerprint module/supports customization of public security fingerprints/FBI fingerprints and other special fingerprint modules |
| NFC | Supports standard protocols such as 14443A/14443B/15693/customization of ID cards and other special modules |
| Battery performance | Capacity | Polymer lithium-ion battery/3.8V/7000mAh/non removable |
| Battery life | 7 hours (default 50% volume, default 200 lumens brightness, playing 1080P local high-definition video) |
| Whole machine parameters | Material of the whole machine | Dual color injection molding process/PC+10% GF/gray+TPU 85 ° |
| Whole machine color | Black/Customizable whole machine monochrome or dual color |
| Size | Bare machine size: 238 (W) * 160 (D) * 25 (H) mm/Packaging size: 314 (W) * 220 (D) * 65 (H) mm |
| Bare weight | Bare machine weight: 800g/Whole machine weight: 1500g (Due to different configurations purchased by different customers, there may be weight errors. If you have weight requirements, please contact the merchant) |
| Adapter | AC100V~240V/out put DC19V/3.42A |
| Working temperature | -20 °C ~ 60 °C |
| Reliability | Storage temperature and humidity | -30 °C ~ 70 °C/95% Non condensing |
| Drop height | 1.22 meter drop resistant composite wood floor |
| Authentication | IP67 certification, ROHS certification, UN.38 certification, safety testing certification. EMC testing certification |
| Software | Operating system | Android 12 |
K3-AMJ10A-MTK8788 10.1 inch
| Basic parameters | CPU | MediaTek MTK8788 processor/8 cores/8 threads/2.0GHz clock speed |
| Memory | Optional 4GB-8GB |
| Storage | Optional 64GB-256GB |
| Display | 10.1-inch LCD screen resolution 1920 × 1200, 560 nits |
| Touch screen | 10 point touch capacitive screen/hardness 7H/supports customization of various special touch screens or electromagnetic screens |
| Camera | Front 5.0MP+rear 16.0MP/autofocus/with LED lights |
| I/O Interface | Audio *1 /Φ3.5mm Standard headphone jack |
| Mini HDMI*1 |
| USB *1 |
| Type-C *1 |
| DC_IN *1 |
| 12Pin Pogo Pin *1 |
| RJ45*1 /One hundred trillion |
| TF/SIM 2-in-1 card slot * 1/TF card supports up to 256GB expansion |
| Modular | WiFi/Bluetooth | Dualband(2.4/5GHz) singlestreamI802.11a/b/g/n/acMAC/BB/RFSOC20/40/80MHz bandwidth,MCSo~9(256-QAM802.11d/e/h/i/j/k/r/vcomplian |
| GNSS | GPS/built-in |
| 4G | FDD :B1 B2 B3 B4 B5 B7B8 B12 B17 B20 B28AB B66 | TDD:B38 B39 GSM: B2 B3 | B40 B41 B5 B8 |
| TDSCDMA: B34 B39 CDMA:BC0 WCDMA:B1 B2 B5 B8 |
| QR code module | Support/Optional Configuration |
| fingerprint | Standard fingerprint module/supports customization of public security fingerprints/FBI fingerprints and other special fingerprint modules |
| NFC | Supports standard protocols such as 14443A/14443B/15693/customization of ID cards and other special modules |
| Battery performance | Capacity | Polymer lithium-ion battery/3.8V/7000mAh/non removable |
| Battery life | 11 hours (default 50% volume, default 200 lumens brightness, playing 1080P local high-definition video) |
| Whole machine parameters | Material of the whole machine | Dual color injection molding process/PC+10% GF/gray+TPU 85 ° |
| Whole machine color | Black/Customizable whole machine monochrome or dual color |
| Size | Bare machine size: 238 (W) * 160 (D) * 25 (H) mm/Packaging size: 314 (W) * 220 (D) * 65 (H) mm |
| Bare weight | Bare machine weight: 1000g/Whole machine weight: 1750g (Due to different configurations purchased by different customers, there may be weight errors. If you have weight requirements, please contact the merchant) |
| Adapter | AC100V~240V/out put DC19V/3.42A |
| Working temperature | -20 °C ~ 60 °C |
| Reliability | Storage temperature and humidity | -30 °C ~ 70 °C/95% Non condensing |
| Drop height | 1.22 meter drop resistant composite wood floor |
| Authentication | IP67 certification, ROHS certification, UN.38 certification, safety testing certification. EMC testing certification |
| Software | Operating system | Android 12 |
Product accessories Due to different product models, the appearance of the accessories may be different from the following figure below,and the following figure is only for reference. If you have any doubts, please confirm with the merchant in advance.
Application area
Company Profile Shenzhen Zoomtak Electronics Co., Ltd. is a global provider of AIoT hardware products and solutions. Zoomtak focus on intelligent industrial development and promotes comprehensive applications of AIoT scenarios. The development of our core competencies in multi-scenario product definition, diverse research and development, flexible manufacturing, and intelligent information management systems, leads us to pursue the mission: "Achieve win-win Success with clients and Create a Smarter Future."
Packaging & Shipping
FAQ Q1: Are you the manufacturer of the product?
A: Yes, of course we are. We have own property rights factory.
Q2: Can you provide OEM or ODM services?
A: Yes, we are willing to provide our customers with OEM and ODM services.
Q3. Can you print my logo on the product?
A: Yes, we support.
Q4. What is the warranty?
A: 3 years warranty.
Q5: If the product is out of warranty, what should I do?
A: We will repair it for free.
Q6: Where can I place an order?
A: You can place an order on the website or contact us directly via email. If you have any other questions, please feel free to contact us
>>
