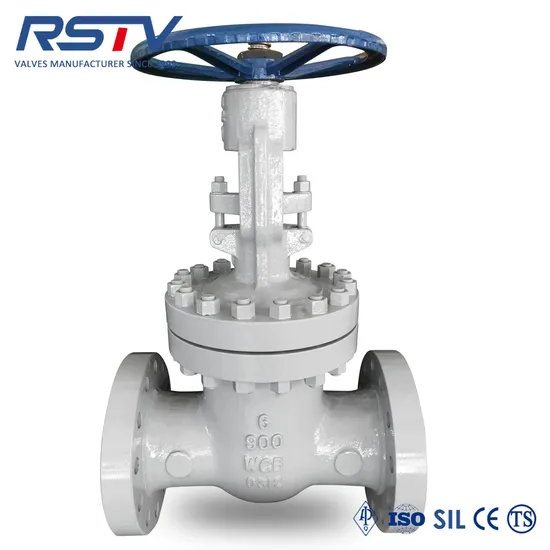

API600 Cast Steel/Stainless Steel 150lb/300lb/600lb/900lb Industry Flange Gate Valve

Product Description

API600 Cast Steel/Stainless Steel WCB/CF8/CF8M Rising Stem 150LB/300LB/600LB/900LB Industry Valve Weld/Flange Gate Valve
Gate Valve has rising stem and non-rising stem types with solid wedge and flexible wedge for different mediums. Rising stem gate valves are used when shut off is required and a quick visual indicator of open/closed position is needed. The stem of rising stem gate valve drives the gate to lift and lower together, and the transmission thread on the valve stem is outside the valve body. Therefore, the position of the gate can be intuitively judged according to the moving direction and position of valve stem, and the transmission thread is lubricated and protected from fluids, but it requires a large installation space. The Wedge of gate valve include Solid taper wedge, flexible wedge, solid wedge, parallel disk. The body bonnet joint type include Screwed Bonnet, Bolted Bonnet, Welded Bonnet, Pressure-Seal Bonnet. The gate valve end connection include flange end (RF, FF, RTJ), Butt-weld end and socket weld end.
Product Description
FEATURES:
--Full port
--Outside screw and yoke
--Bolted bonnet
--Flexible wedge, fully guided integrated seats
--Rising stem and non-rising hand-wheel
--Tongue and groove between body and bonnet
--Pneumatic and electric actuator available
TECHNICAL SPECIFICATION Manufacture standard: API 600
Design standard: ANSI B16.34
Face to face standard: ANSI B16.10
End flanges standard: ANSI B16.5
Butt weld ends standard: ANSI B16.25
Inspection and test standard: API 598 Specifications: Company name: RST VALVE GROUP CO., LTD.

Product Name	Stainless Steel Flange Ends Gate Valve WCB/CF8M 150LB/300LB/600LB/900LB/1500LB
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc.
2. Size	1/2''~48'' ( DN15~DN1200)
3. Thread standard	ISO9001 /CE/TS/API607/SIL
4. Port	Full Port
5. Working Pressure	150LB~1500LB
6. Connection Ends	RF, FF. RTJ, Butt Welded.
7. Working Temp.	-29~425ºC, or according to customer requirements for different industry.
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Operated	Handwheel
10. Inspection & Testing	According to API598
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping or against copy of BL
Country of Origin	Wenzhou city, China
Production Capacity	6000 ton/year
MOQ	10 PCS/size

Trust RST VALVE GROUP CO., LTD. for reliable valves that adhere to the highest quality and performance standards.

Material List
Introducing the API600 Cast Steel Rising Stem Globe Valve from RST VALVE GROUP CO., LTD. This valve is perfect for a wide range of applications and is available in both Wcb and Stainless Steel options.
RST VALVE GROUP CO., LTD. presents the API600 Cast Steel Rising Stem Globe Valve, perfect for a wide range of industrial applications. This valve is designed to provide unmatched reliability and durability, making it the ideal choice for your specific requirements.

	Name	WCB	LCC	LCB	WC6	C5	C12
1	Body	A216 WCB	A352 LCC	A217 LCB	A217 WC6	A217 C5	A217 C12
2	Cover	A216 WCB	A352 LCC	A217 LCB	A217 WC6	A217 C5	A217 C12
3	Wedge variants	A182 F6a A182 F316 A182 304 Monel	A352 F316 A182 F6a	A182 F316	A182 F6a	A182 F9 + overlay	A182 F9 + overlay
		A216 WCB + overlay	A352 LCC + overlay	A352 LCC + overlay	A182 F9 + overlay	A217 C5 + overlay	A216 C12 + overlay
		A105+overlay A351 CF8 A351 CF8M A217 CA15	A351 CF8M	A351 CF8M	A217 WC6 + overlay
4	Seat	A105 B + overlay	A350 LF2 mod. + overlay	A350 LF2 + overlay	A182 F5 + overlay	A182 F5 + overlay	A182 F321 + overlay
5	Bolt variants	A193 B7/B7M	A320 L7M	A320 L7M	A193 B7	A193 B7	A193 B7
6	Nut	A194 2H/2HM	A194 7M	A194 7M	A194 2H	A194 2H	A194 2H
7	Handwheel	ASTM A47.A536
8	Gland flange	A105
9	Spindle nut	A439 D2(Ni-resist)
10	Wheel nut	ASTm A47
11	Yoke nut	Carbon steel
12	Eyebolt	A307 Gr B
13	Pin	carbon steel
14	Nut	A194 2H
15	Grease box	commercial
16	Label	AISI 304
17	Bearing	commercial
18	Bolt	A193 B7
19	Nut	A194 2H
20	Bolt	A193 B7
21	Nut	A193 2H
22	Cover		A217 LCC	A217 LCC	A216 WCB
23	Yoke		A217 LCC	A217 LCC	A216 WCB

	Name	CF8M	CF8C	CF3	CF8	CN7M	Gr.4A
1	Body	A351 CF8M	A351 CF8C	A351 CF3	A351 CF8	A351 CN7M	A890 Gr.4A
2	Cover	A351 CF8M	A351 CF8C	A351 CF3	A351 CF8	A351 CN7M	A890 Gr.4A
3	Wedge variants	A182 F304 A182 F316 Monel	A182 F304 A182 F316 Monel A182 F321	A182 F304 A182 F316 Monel	A182 F304 A182 F316 Monel	Alloy 20	2205
		A351 CF8M A351 CF8 A351 CF8M + overlay	A351 CF8 A351 CF8M A351 CF8C + overlay	A351 CF8 A351 CF8M A351 CF8 + overlay	A351 CF8 A351 CF8M A351 CF8 + overlay	A351 CF7N A351 CFN + overlay	A890 4A A890 4A + overlay
4	Seat	A182 F316 + overlay	A182 F316 + overlay	A182 F316 + overlay	A182 F316 + overlay	Alloy 20 + overlay	2205 + overlay
5	Bolt variants	A193 B8M	A193 B8M	A193 B8M	A193 B8M	A193 B8M	A193 B8M
6	Nut	A194 8M	A194 8M	A194 8M	A194 8M	A194 8M	A194 8M
7	Handwheel	ASTM A47. A536
8	Gland flange	stainless steel	stainless steel	stainless steel	stainless steel	stainless steel	stainless steel
9	Spindle nut	A439D2(Ni-resist)
10	Wheel nut	ASTM A47
11	Yoke nut	stainless steel
12	Eyebolt	A193 B8M
13	Pin	stainless steel
14	Nut	A194 8M
15	Grease box	commercial
16	Label	AISI 304
17	Bearing	commercial
18	Bolt	A193 B8M
19	Nut	A194 8M
20	Bolt	A193 B8M
21	Nut	A194 8M
22	Cover	A351 CF8M	A351 CF8C	A351 CF3	A351 CF8	A351 CF7N	A890 4A
23	Yoke	A351 CF8M
