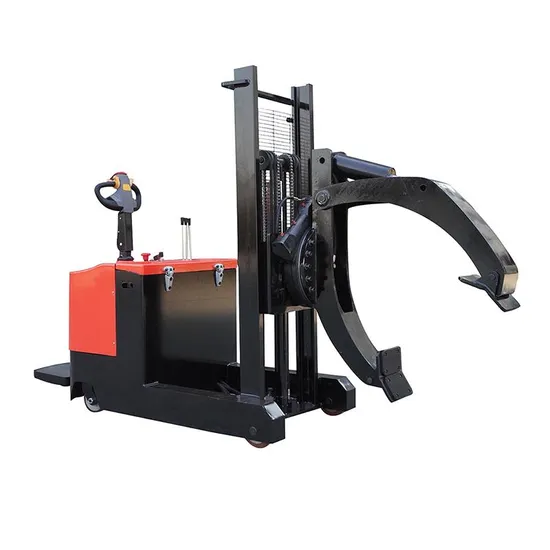

1000kg 2200lbs Electric Clamp Roll Lifter for Viscose/Polyester Fabric

Product Description

Product Description Electric roll lifter, also known as electric roll stacker,electric rotary forklift or electric powered walkie stacker,which is designed for carrying cylindrical or roll materials of varying sizes up to 59"in diameter rated with a maximum weight capacity and lift height of 2200 lbs and 98"high respectively.
The electric roll lifter features powered drive and lift and comes with a unique roll gripper,the roll clamp attachment lifts reels of material, such as paper, from the vertical position and rotates to the horizontal position, by means of powered motorised clamping and rotation.
This electric roll lifter is frequently to handle rolls of material including paper, film, foil, textile and nonwovens. These materials are commonly found in the print and packaging industries. For instance paper roll handling equipment is commonly used in the paper industry to lift and transport paper rolls to printing machines and throughout the manufacturing and distribution process.

Model	CPD0516Z-500	CPD0525Z-500	CPD0516Z-1000	CPD0525Z-1000	CPD1025Z-1500
Load Capacity (kg)	500	500	500	500	1000
MaxLift Height (mm)	1600	2500	1600	2500	2500
Roll Diameter (mm)	200-500	200-500	600-1000	600-1000	800-1500
Battery (V/Ah)	24/200	24/200	24/200	24/200	24/200
Charger (V/Ah)	24/30	24/30	24/30	24/30	24/30
Self-weight (kg)	1048	1250	1460	1640	1860
Overall Size (mm)	2500*950*2000	2500*950*1785	2900*1500*2000	2900*1500*1785	3300*1900*1785
Lift Motor (kw)	2.5	2.5	2.5	2.5	2.5
Drive Motor (kw)	AC1.5	AC1.5	AC1.5	AC1.5	AC1.5
Climbing Slope (%)	4/6	4/6	4/6	4/6	4/6
Working Aisel (mm)	2900	2900	3600	3600	4000
Walking Aisel (mm)	1000	1000	1600	1600	1900
Service Brake	Electromagnetic Braking

1.Powered drive and lift provides quick, easy and efficient material handling solutions.
2.Made of high-strength metel to ensure strong and stable clamping force. Easily clamping the paper rolls for moving without shaking or falling off, making your handling safer and more reliable.
3.The unique vertical drive cell, and special stacker's gear box, which are far away from the dust, long-term moisture erosion, good heat dissipation, it is conducive to work in long time.
FOR BEST QUOTE,WE WOULD LIKE TO KNOW:
1)What's your load capacity? -----We have 100-1500kg available
2)What's your max lifting height?----We have 1.6-3meter available
3)What's your Max. roll diameter and Min. roll diameter?
4)How many quantity do you need?----MOQ is one
5)Quote which terms?----EXW factory price/FOB shanghai price/CIF your port

---
