High Performance Reusable Practical Sugar Cocoa Paste Chocolate Making Grinding Machine

Product Description

Product Description

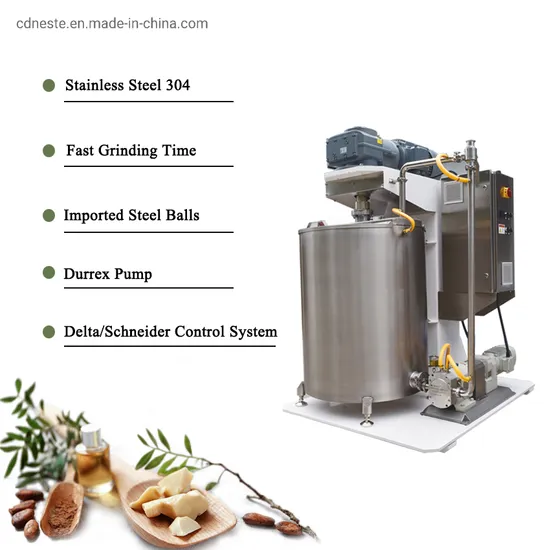

Vertical chocolate ball mill is a special machine for fine grinding chocolate and sugar/milk powder mixture.Through the friction between the material and the steel ball in the vertical cylinder, the material is fine grinded to the required fineness,usually 18-25micron.The whole body of the machine is made of stainless steel 304 , Delta control system, Schneider Electric and Durrex pump.
We have different capacity for this machine, capacity range 150-1000L.
Detailed Photos
Outlook for BM500/1000

Product Parameters

Model	LST-BM150	LST-BM300	LST-BM500	LST-BM1000
Capacity	150L	300L	500L	1000L
Milling time	3-4h	3-4h	3-4h	3-4h
Motor power	11kw	15kw	30kw	32kw
Electric heating power	6kw	6kw	9kw	12kw
Material of grinding ball	import bearing steel ball
Weight of grinding ball	200kg	250kg	400kg	500kg
Output fineness	22-25 micron	22-25 micron	22-25 micron	22-25 micron
Dimension(mm)	1000*1100*1900mm	1400*1200*2000mm	1400*1500*2350mm	1680*1680*2250mm
G.weight	1200kg	1600kg	1900kg	2500kg
Components	Ball mill and pump, not including final storing tank.

Packaging & Shipping
All machines are usually packed in wooden cases or in containers directly.
It can be shipped by truck or by sea.
Leading time is usually 30-50days.
Installation Instructions
Connect machine to correct power and cold water supply. Then you can easily start the machine according to the manual provided with machine. For complete line, we may provide online assistance for installation. On-site installation is also available.
After Sales Service
* 1 year standard warranty.
* 7*24h online support.
* Spare parts available.
* Free program update.
* Free sample mould.
* Free new product recommendation.
* On-line/On-site installation / training.

---
