Product Description
Product Description

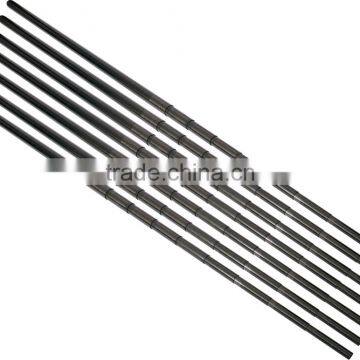

Product name: Carbon Fiber Telescopic Pole
Feature:
1.Light & high strength
2.Good corrosion, good resilience & good resistance
Company name: Weihai Fuhai Composite Material Co.,Ltd
Company type: Manufacturer
Brief introduction:
We are specialized in manufacturing all kinds of carbon fiber tube .
Carbon Fiber tube has been widely used in hitech fields, such as aerospace,
modern sewing machinery, petrochemical industry, medical machinery,automobiles,
machinery manufacturing, construction, sports and entertainment items.
We can provide carbon fiber tube with different sizes and colors and surface treatment.
Aluminum or polyester clamps can be added in the telescopic pole.
The specification of the seven-section telescopic pole we usually use:
length
|
| OD
| ID
|
section 1--- length 1850 mm
| 24
| 19.7
|
section 2--- length 1775 mm
| 28.6
| 25.6
|
section 3--- length 1823 mm
| 33.4
| 30.3
|
section 4--- length 1865 mm
| 38.2
| 35.2
|
section 5--- length 1904 mm
| 43.2
| 39.7
|
section 6--- length 1945 mm
| 44.3
| 47.8
|
section7---length 2040 mm
| 54.3
| 49.8
|
TOTAL LENGTH
| 13202mm
|
| |
The specification of the nine-section telescopic pole we usually use:
| section | I | H | G | F | E | D | C | B | A |
| clamp | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| maximumOD | 52.75 | 48.25 | 43.75 | 39.25 | 35.75 | 32.65 | 29.55 | 26.45 | 23.35 |
| standardOD | 52.60 | 48.10 | 43.60 | 39.10 | 35.60 | 32.50 | 29.40 | 26.30 | 23.20 |
| minimumOD | 52.45 | 47.95 | 43.45 | 38.95 | 35.45 | 32.35 | 29.25 | 26.15 | 23.05 |
| maximumID | 48.65 | 44.15 | 39.65 | 36.15 | 33.05 | 29.95 | 26.85 | 23.75 | 20.65 |
| standardID | 48.60 | 44.10 | 39.60 | 36.10 | 33.00 | 29.90 | 26.80 | 23.70 | 20.60 |
| minimumID | 48.55 | 44.05 | 39.55 | 36.05 | 32.95 | 29.85 | 26.75 | 23.65 | 20.55 |
| thickness | 2.0 | 2.0 | 2.0 | 1.5 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
Quality Certificate:
>>
