| US$2,790.00 | 1 Piece (MOQ) |

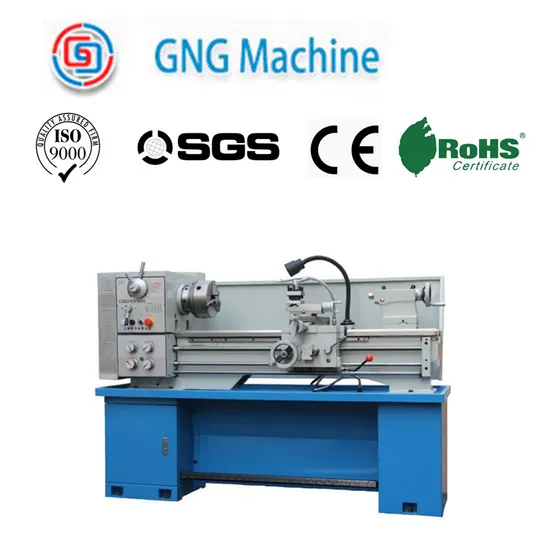

Model | CQ6236x1000mm |
| Swing over bed | 360mm |
| Swing over cross slide | 206mm |
| Swing in gap diameter | 490mm |
| Length in gap | 130mm |
| Length between centers | 1000mm |
| Center height | 180mm |
| Width of bed | 218mm |
| Taper in nose | MT6 |
| Spindle nose | D1-5 |
| Spindle bore | 38mm/52mm(optional) |
| Speeds range | 65-1810mm |
| Compound rest travel | 76mm |
| Cross slide travel | 200mm |
| Leadscrew thread | 3mm pitch |
| Leadscrew diameter | 24mm |
| Cutting tool max section | 16x16 mm |
| Longitudinal feeds metric | 0.053-1.291mm/rev(40Nos.) |
| Longitudinal feeds imperial | 0.002-0.051"/rev(40Nos.) |
| Cross feeds metric | 0.011-0.276mm/rev(40Nos.) |
| Cross feeds imperial | 0.001-0.011"/rev(40Nos.) |
| Thread metric pitches | 0.4-7mm |
| Thread imperial pitches | 60-4 T.P.I |
| Thread diametral pitches | 44-16.DP |
| Thread module pitches | 0.4-3mm |
| Quill diameter | 32mm |
| Quill travel | 100mm |
| Quill taper | MT3 |
| Main motor power | 1.5KW(50HZ) |
| Coolant pump power | 40W(50HZ) |
| Packing size(cm) | |
| NW/GW(kg) | 640kg |
