USA Popular N95 1860 3D Masks Fully Automatic 8210 N95 Cup Shape Face Mask Making Machine

Product Description

Product Description
USA popular N95 1860 3D masks FULLY AUTOMATIC 8210 N95 CUP SHAPE FACE MASK MAKING MACHINE
Machine Introduction:
The equipment is used for feeding the whole roll, multi-layer spunlace cloth, dissolving spray cloth and non- woven cloth roll through hot pressingMolding, overlapping cold pressing, ultrasonic welding and fusion, automatic pasting foam, final mask cutting and forming, automatic hot pressing nose bridge, welding breathing valve, automatic weldingear to take out the finished product.rawMask is comfortable to wear, no sense of pressure, good filtering effect, fit the shape of human face, can be applied to medical, electronics, mining, construction and other industries.

Main Features:
1.This cup mask machine adopts PLC, touch screen control, main conveyor belt adopts imported servo motor transmission, accurate transmission, stable control, adjustable speed.
2.The whole line is fully automated, with a production speed of 15-20PCS per minute, and can be produced without shutdown during feeding.
3.Melt spray can be cold pressed, the product quality can reach FFP3 grade
4.Automatic paste sponge strip, accurate and beautiful position.
5.The equipment is easy to maintain, modular design, can be quickly spliced, to achieve rapid production.
6.The equipment size is small, 3300*2200*2200/4800*1800*2200mm covers less area, convenient for air transportation.
7.Each module can be used separately, free combination
8.the processing workpiece aluminum alloy hard oxygen processing, the frame adopts cast iron welding, baking paint, beautiful, solid and not rust.
9.PLC(Mitsubishi PLC) programming control, high stability, low failure rate, less noise.
10.Adopt imported servo motor, imported pneumatic components, high precision.
11.The material size is small, photoelectric detection of raw materials, avoid mistakes and reduce waste.
12.The machine adopts pulley and fixed foot, which is convenient and fast to move, strong and fixed, and does not waver.

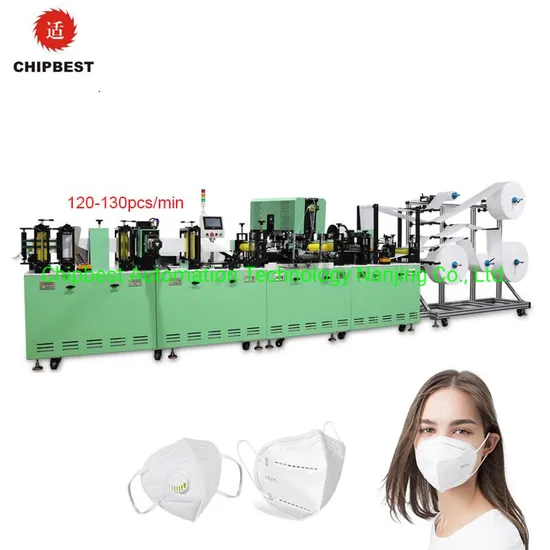

Cup Mask Machine Picture :
Technical Parameters :
1.Machine size length width height: 7400mm*2400mm*2200mm can be split into
(3300*2200*2200/4800*1800*2200mm two parts)
3. Weight: Total weight 2.8T ,1.3T/1.5T after splitting
4. Voltage: AC380V 50-60Hz
5. Production efficiency: 15-20 pieces/min
6. Power: 20KW
7. Air consumption: 3.5m³/min Air pressure 0.6Mpa (suitable for 22KW air compressor)
Cup Shape Mask Machine Action Process :
Overall Layout :
Forming Part :
Equipment melt-blown cloth, non-woven cloth separately formed, can be cold pressing or hot pressing,
maintain the integrity of melt-blown cloth, quality can reach FFP3 grade.
Sponge Strip Part :
Welding Breathing Valve Part :
Through continuous research and innovation, Chipbest Technology (Dongguan) Co., Ltd. Independently developed disposable medical flat mask machine, N95 folding mask machine, KF94 (fish-shaped) mask machine, cup-shaped mask machine, bed cover machine, bath cap machine, sleeve machine, condom production equipment, nucleic acid (virus) extracting&filling machine, swab packaging machine, automatic production equipment for antigen reagent detection kits, automatic TV screen assembly equipment, power battery manufacturing equipment, automatic detection equipment for wire solder of solid crystal in the semiconductor field (semiconductor AOI), etc. A lot of equipment has been exported to more than 100 countries and regions such as France, Canada, the United States, Turkey, South Korea, Bulgaria, Romania, India, Nepal, Iran, Thailand, etc.
Cup Mask Machine Packaging :

---
