1-2 T/H Palm Oil Press Machine Plant Palm Oil Press Production Line

Product Description

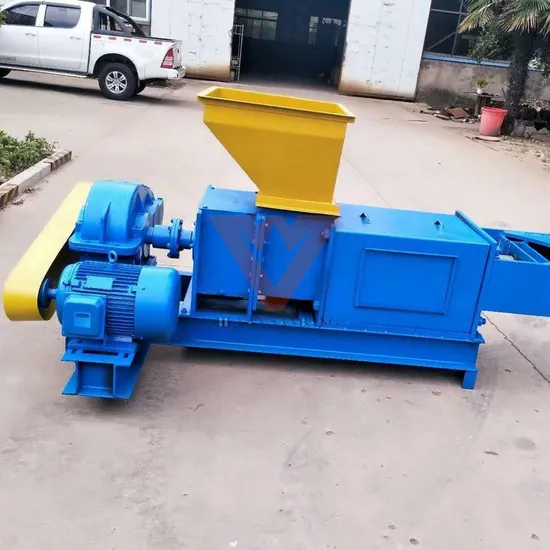

1 ton/hour double helix palm fruit dedicated oil press
Product Description

Model	PALM-2
Handling capacity	800-1000kg/H
Matching power	5.5-7.5kw three phase/15hp
Internal dimensions	200*900mm
Spiral length	900mm
Screw speed	35-40r/min
Gross/Net Weight	800/900kg
Package size	2450*900*1150mm

Application
The PALM-2 Type Screw oil press has the feature of easy operation, high oil yield, low consumption. It is well received in the Africa market, and has the good reputation among the customers.
The main oil seeds : palm fruit The construction
The main component are: host machine and motor
The host machines includes: base, frame, gear reducer, screw shaft, bar cage, feed inlet, cake outlet, oil-outlet and pressing bolt.
Features
A. Small space oppucation, easy to operate.
B. Low power consumption, energy-saving.
C. PALM-1 Type machine is suitable for the fixed point and mobile operation, convenient to move. Installation Instructions
Operating specification
1. Notes before the power-on:
A. Clean the bar cage, and make sure there is no foreign body on the machine.
B. Add the right amount of lubricating oil into the reducer.
C. Check for all parts bolts.
D. Make sure that the motor connected properly.
The operation steps
Turn on the motor, when it is working properly, and then feed the steamed palm fruit into the hopper grandually. In the pressing operation, see the conditions of oilout and cake-out. If there is little oilout or no cake out, please ajust the pressing bolt to get the best oil yield. Saftey and maintance
The PALM-2 machine use the three-phase 380 V AC. And also can customized according to the requirements, such as two-phase 220 V. To ensure that the saftey of all the electrical system, it must be take the groud protection measures. The cause of fault and the solution of fault

1. No oil or less oil	1. Ajust the squeezing bolt
2. The sudden stuck in the pressing operation	2. Halt. Check for the pressing barrel, see if the material is too much, clean the pressing barrel, and then power on.
3. Less oil out, more inpurity in the oil	3. Check for if there any damage of the hole of bar cage, change the bar cage.
4. The damage of shaft	4. Chage the shaft
