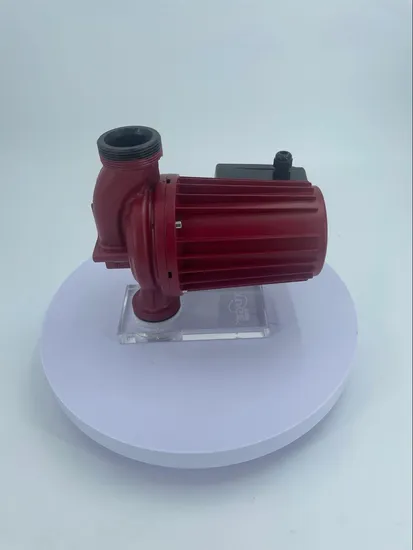

Lrs Series Hot Water Circulating Water Pump for Household

Product Description

The series of electric pump is suitable for cold and hot water pressurization cycles from -10ºC to +110ºC, especially for supporting underfloor heating systems, such as automatic circulation pressurization of water distributors and water collectors; Booster water supply for hot water boilers and wall mounted boilers; Water cooled air conditioning and central air conditioning supporting facilities; Low water pressure household washing machine supporting, increasing the flow and pressure of tap water; Industrial liquid circulating water supply, with special engineering materials as the pump body, it is high-strength, corrosion-resistant, acid-base resistant and rust resistant, especially suitable for industrial liquid circulating water supply and household hygiene water.
Applicioatns
For heating system, mansions of city, villa of suburb house
To match with industrial equipment, supply water in cycle for cooling air-condition, boiler and solar energy
To supply hot water and keep warm in cycle
Technical Date
Suitable fluids
Heating water to VDI2035
Water/glycol mixtures max.mixing ratio 1:1
Hydraulic corrections required for mixing ratio above 20%
Performance
Single-speed automatic switch
Fluid temperature range: -10ºC - +110ºC
Max.working pressure:10bar
Ambient Temperature
Permissible:40ºC
Power
Mains power:1~230v, 50Hz
Operating conditions
Maximum fluid temperature up to +110ºC
Motor
Degree of protection: IP42
Insulation class: F
Construction Materials
Pump body: Cast iron
Impeller: GF-PP
Shaft: Ceramic
Bearings: Ceramic

Accessories
Union connector fittings, thermal insulation
Mounting
Pump shaft in the horizontal plane, terminal box optionally 3.6 9. or 12 o'clock
Pump Equipment
Screwed end single head pump Manual 3-speed control
Non-overloading single phase motor
Pump body-180mm port-to-port
-130mm port-to-port

---
